CPP CPE Multi Layer Film Extrusion Line Features
1. Excellent Plasticization & Ultra-Stable Molding
Combined with professional screws, the plasticization and mixing capabilities are fully optimized. Additionally, with the European-style static mixer, the material can be discharged evenly, which not only improves the yield but also ensures ultra-stable film formation throughout the molding process. The equipment is equipped with positive and negative pressure devices, ensuring ultra-stability throughout the melting and film forming process.
2. Precise Control & Efficient Forming
3. Cost-Saving & Easy to Operate
It comes with an online waste material recycling system, which can directly reduce production costs; combined with the fully automatic center winding system (imported tension controller), changing rolls and cutting are very convenient and the operation is extremely simple.
4. Multi-Functional Compatibility & Strong Multi-Layer Production Capacity
Adjustable temperature, high-precision tension control, and it can also allow CPE/CPP films to be gently unfolded; it can achieve up to 72 layers, and the barrier properties, heat resistance and UV resistance can all be customized, easily meeting the requirements of high-end packaging.
5. Highly Efficient & Energy-Saving
It can produce at high speed, with uniform film output and high quality; it is equipped with an imported metering pump, ensuring precise material control. Coupled with energy-saving motors and an intelligent system, energy consumption is significantly reduced.

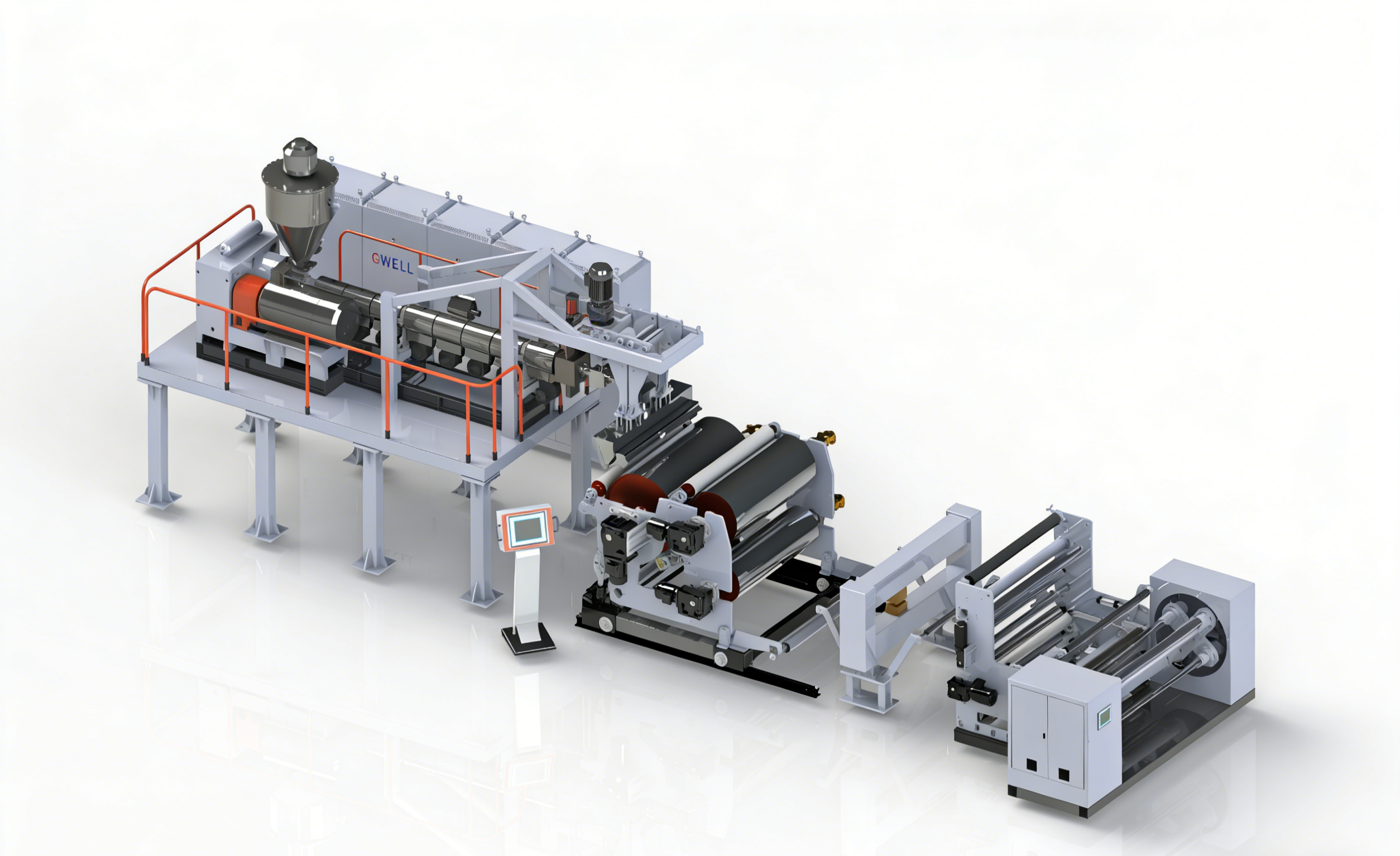

CPP CPE Multi Layer Film Extrusion Line Process Flows

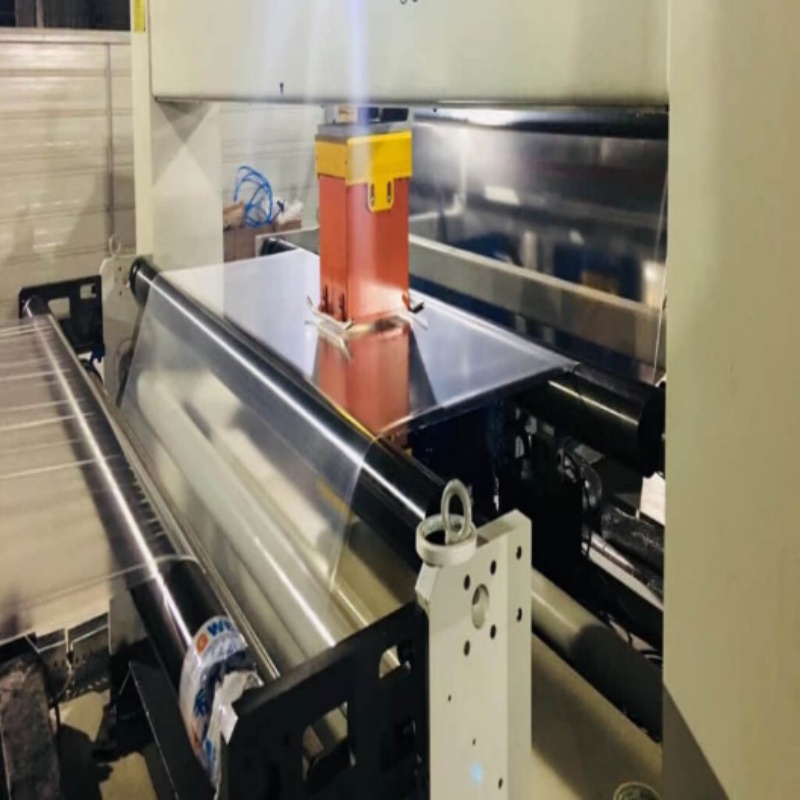

Extruder—Screen changer—Melt pump—T-die—Calender—Thickness Scanner—Cooling Bracket—Cutting Knife—Haul-off—Winder
Product Features

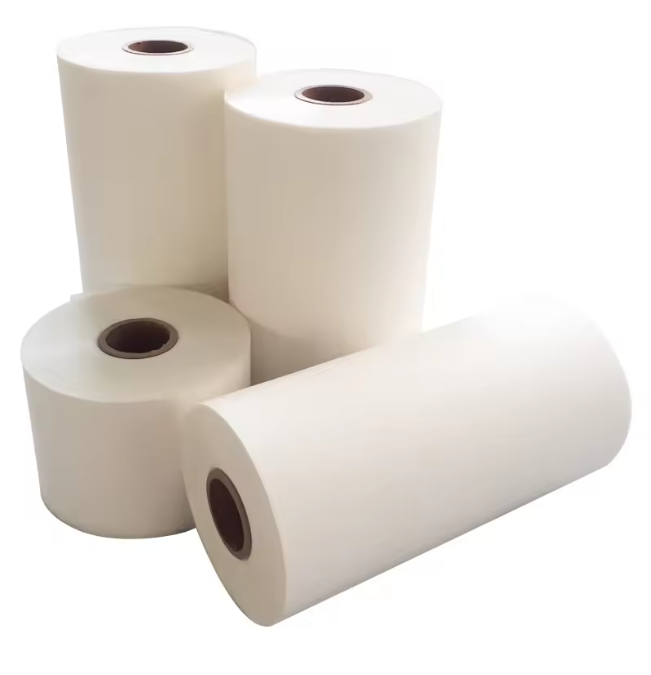

1. CPP (Cast Polypropylene) Film Features
Superior Physical Properties: High tensile strength, good rigidity, and excellent impact resistance. When used in packaging, the mechanical performance is particularly reliable.
Excellent Optical Properties: The film has high transparency, good luster and low haze, which can clearly display the product appearance and significantly enhance the product’s appeal.
Outstanding Heat Resistance: It remains stable even under high-temperature conditions. The conventional heat resistance can reach 120℃, suitable for heat sealing, sterilization and other high-temperature processing procedures.
Strong Barrier Properties: It has moderate barrier effects against moisture, oxygen and odors, effectively extending the shelf life of food, daily necessities, etc.
Excellent Processing Performance: It is suitable for printing and compounding, and the heat sealing effect is also good, enabling smooth connection with subsequent various packaging processing procedures.
2. CPE (Cast Polyethylene) Film Features
Full Flexibility & Softness: Excellent toughness, soft touch, good extensibility, and it feels extremely comfortable to the touch. It can also fit various irregularly shaped products.
Super Strong Puncture Resistance: Excellent puncture resistance and outstanding tear resistance. It can effectively prevent the product from being damaged during transportation, storage, and use.
Super Reliable Sealing Effect: It can stably heat seal at low temperatures, with a wide temperature range for heat sealing and high sealing strength. The packaging sealing performance is guaranteed.
Chemical Corrosion Resistance: It can resist acids, alkalis, and most chemical substances, suitable for product packaging with requirements for chemical stability.
Suitable for Low-Temperature Environments: Even at low temperatures, it remains flexible and stable in performance, and will not become brittle and crack due to the cold environment.

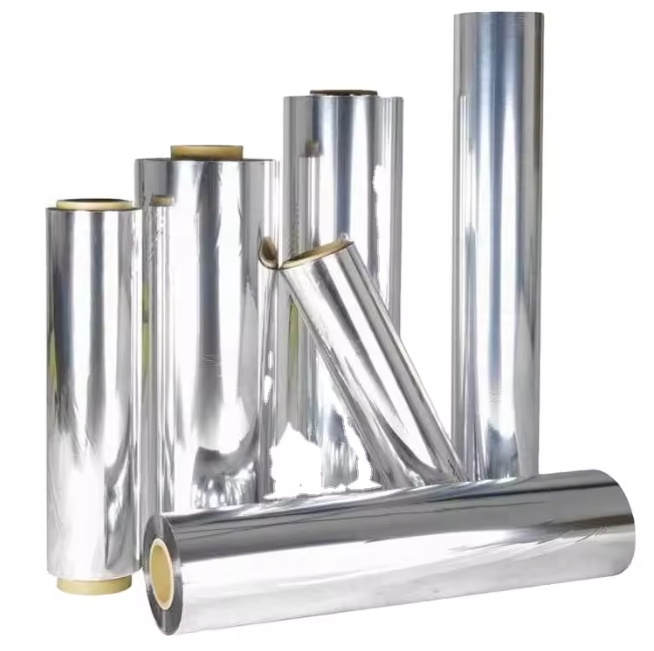

3. CPP CPE Multi Layer Film Features
Complementary Performance Advantages: By combining the rigidity and heat resistance of CPP with the flexibility and puncture resistance of CPE, the multi-layer structure works in synergy, easily meeting various complex packaging requirements.
Customizable Barrier Performance: Utilizing the multi-layer co-extrusion technology with up to 72 layers, functional layers such as EVOH and PA can be added, significantly enhancing oxygen barrier, moisture resistance, and UV resistance, suitable for high-end packaging needs such as preservation and long-term storage.
Superior Mechanical Strength: The multi-layer structure optimizes the overall tensile, tear resistance, and impact resistance, providing more reliable protection for products compared to single-layer films.
Super-Precise Thickness Control: Each layer thickness can be finely adjusted, ranging from 0.02 to 0.1 millimeters, ensuring uniform film thickness and stable product quality.
Extremely Wide Application Scenarios: Combining the process advantages of CPP and CPE, it can be used for food packaging such as snacks and fresh produce, medical packaging such as disposable medical supplies, and industrial packaging such as electronic components and mechanical parts.
Environmentally Friendly & Cost-Effective: The multi-layer structure reduces waste through precise material allocation, and the film complies with environmental standards and is recyclable, perfectly balancing performance and cost-effectiveness.
Parameter (Please consult sales engineers for details)
Extruder Type | Single screw extruder GWS65/90/65 | Single screw extruder GWS80/120/80 | Single screw extruder GWS90/130/90 |
Film layers | Single layer or Three layers (A/B/A) | ||
Raw material | PP/PE | ||
Net width | 2100mm | 2600mm | 3300mm |
Thickness range | 0.02mm-0.1mm | ||
Line speed | 200m/min | ||
Application

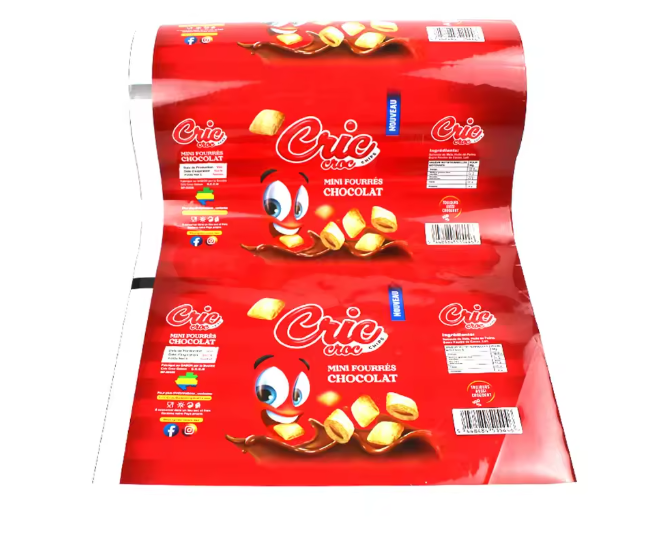

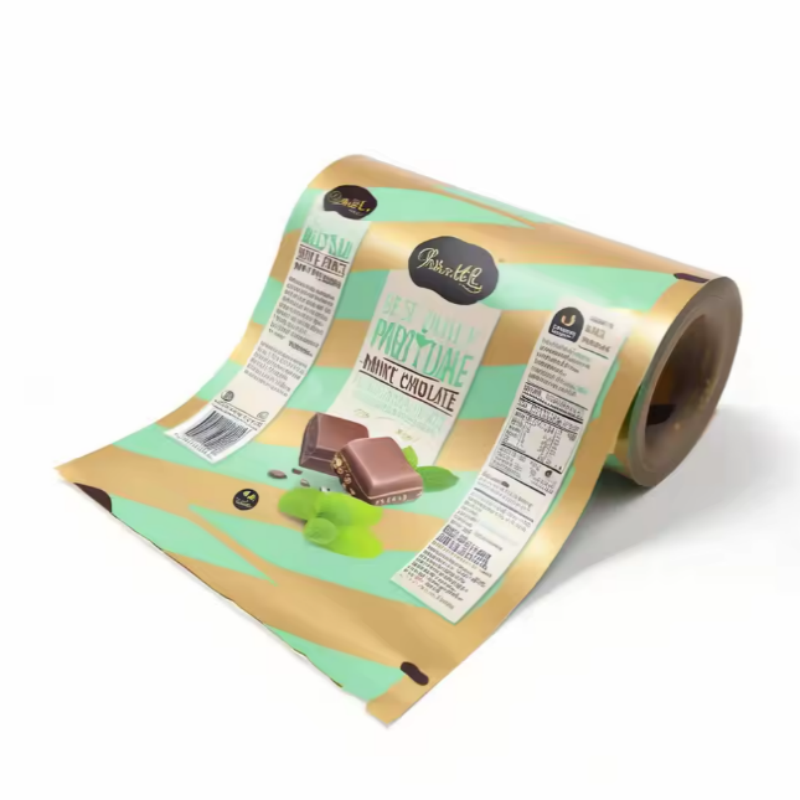

1. Food Packaging: CPP CPE cast films are highly suitable for packaging various foods such as bread, biscuits, and frozen foods. They have high transparency, excellent barrier properties and sealing performance. They can not only firmly preserve the freshness of the food, but also clearly display the appearance of the product.

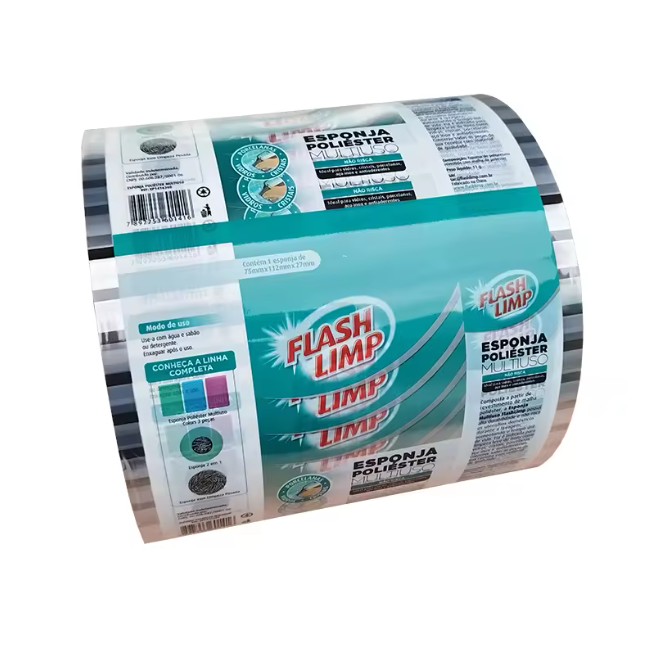

2. Consumer Product Packaging: Suitable for packaging non-food items such as sanitary napkins, diapers, cosmetics, and household items. It is sturdy, durable, moisture-proof, and can fully meet the core protection requirements during storage and transportation.

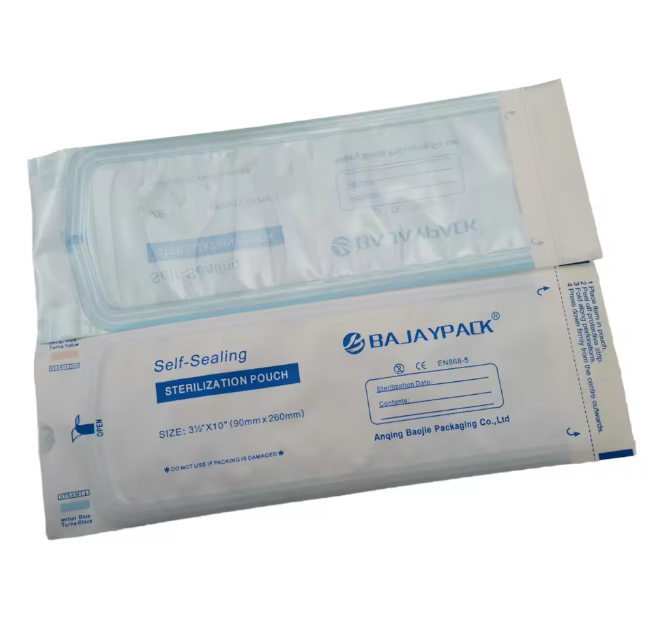

3. Medical Packaging: Our extrusion production line can produce special films for sterile medical packaging. These films can maintain a sterile state for a long time and effectively prevent contamination, providing comprehensive safety guarantees for the use of medicines and medical devices.
4. Industrial Applications: CPP and CPE films are also suitable for various industrial packaging scenarios. They can provide reliable protection for industrial products, effectively blocking moisture, dust and other environmental influences, ensuring the products remain intact throughout the process.
5. Environmental Packaging: With the increasing awareness of environmental protection nowadays, CPP and CPE films are recyclable and more environmentally friendly, and they can provide sustainable packaging solutions that meet the needs of various industries.
About Us
GWELL was established in 2010 and is a national high-tech enterprise specialized in making polymer flat forming equipment. It has over 20 years of experience in the plastic extrusion industry. GWELL has over 100 R&D personnel at present. Relying on strong manufacturing capabilities and talent people, GWELL achieves 100% independent designing and manufacturing of key components, and its annual production capacity reaches over 2,000 production lines.
There are more than 300 sets of advanced processing equipment. The single piece lifting capacity of workshop is up to 32 tons. We can produce heavy-duty extrusion equipment with a width of more than 8 meters and has an annual output of more than 2,000 sets of flat forming equipment for various types of plates, sheets, and films. Production capacity of the PET Sheet Extrusion Line can reach 1 ton per hour, and the PP sheet material production capacity can reach 900 kilograms per hour.
GWELL delivered more than 5,000 sets of flat forming equipment to the global customers. RENEWABLE RESOURCES, CSIQ, HIUV, LUSHAN and SVECK are all loyal partners of GWELL. Annual sales volume has been more than 1 billion yuan in making polymer flat forming equipment for three years and products are sold in more than 60 countries and regions around the world, including Russia, Spain, Turkey, Iran, South Korea, Indonesia, India, Japan, Germany and South America.
Certifications:
CE Certificate
Certificate No.: M.2020.103.UY1236
Certificate No.: MD-17-272-1
Patent Certificate
Certificate Name: Panel Cutting Machine with Debris Recycling Mechanism
Certificate No.: ZL 2022 2 2718667.8
Certificate Name: A Tension Adjustment Device for Plastic Film Production
Certificate No.: ZL 2024 2 3236677.3
Certificate Name: Standard-length Cutting Equipment for PET Sheet Extrusion Line
Certificate No.: ZL 2021 2 1379038.6
FAQ
1. How do you make the quotation for client?
Please offer the following information, so we can give you price and our advice as extruder manufacturers: Products dimension/material/ capacity requirement you want to produce. If you can also send us photos of your samples, it would be highly appreciated.
2. How long is the delivery date?
Usually it takes about 90 days depends on different machinery upon receipt of order advance payment.
3. Can You Provide Turnkey Project?
We can provide a full range of technical services, plant planning, technology, engineer training, to ensure the normal operation of your plant.
