PET Three Layers GAG Sheet Extrusion Line Features
1. Intelligent & Stable Control System
Equipped with an intelligent control system, the network transmission speed is fast, and it can stably control the production speed, pressure and material transportation. The production speed can be adjusted from 1 to 80 meters per minute. It adopts Siemens inverter servo control and Ethernet technology to ensure efficient, precise and safe production; it also comes with quick fault location, remote maintenance and human-machine interface diagnosis functions, which can effectively reduce equipment downtime.

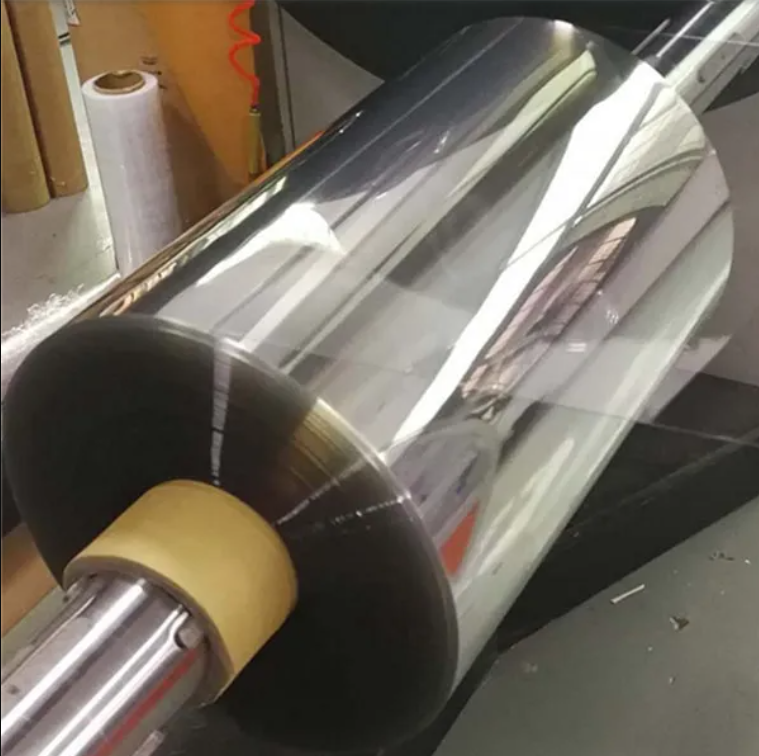

2. Precise & Safe Winding Performance
The winding part uses servo control, which is more accurate and can synchronize the speed with the entire machine. The winding operation is simple, convenient and safe.
3. Outstanding Sheet Material Quality
The GAG sheet materials produced have particularly excellent performance, with high transparency, high gloss, strong self-adhesion, good barrier effect; there is no stress whitening phenomenon, and the material is resistant to folding, has stable chemical properties, corrosion resistance, and excellent impact resistance in low-temperature environments.
4. Flexible Customization Capability
The sheet materials can be coated on one or both sides according to customer requirements, and different-sized sheet materials can be customized to meet the production needs of various products such as cylinders, boxes, and windows.
5. Advanced & Reliable Equipment Configuration
The equipment adopts a dual extruder configuration, combined with a screen changer, gear pump, flow channel and distributor, which can precisely produce PETG + APET + PETG three-layer GAG sheet materials; it can also be equipped with a single or twin screw extruder according to the customer’s raw material requirements. The entire machine is made of high-quality low-carbon steel, with electric drive and automatic level function, which is easy to operate and very durable.
6. Easy to Debug and Maintain
The equipment is a highly digitalized system, which significantly simplifies the debugging and daily maintenance processes, reducing the operational difficulty for everyone.

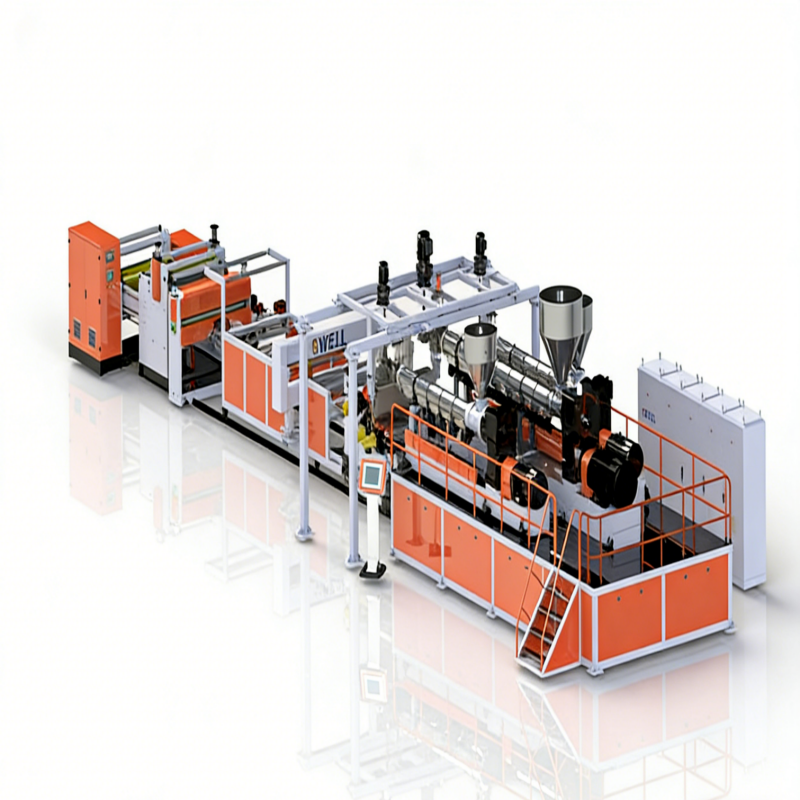

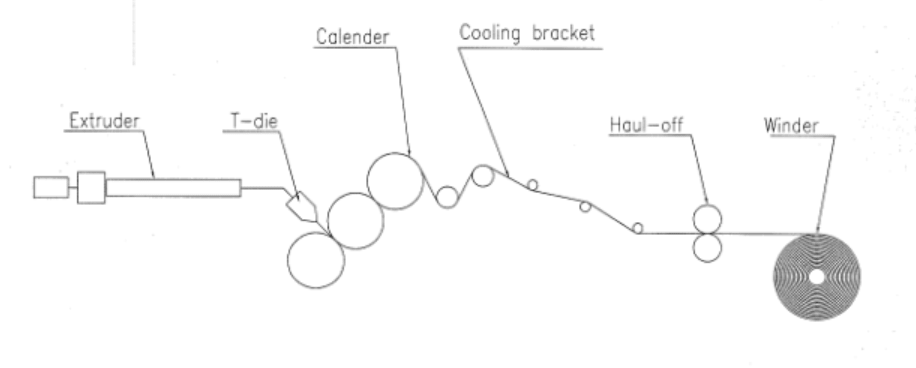

PET Three Layers GAG Sheet Extrusion Line Process Flows
Extruder—Screen changer—Melt pump—T-die—Calender—Cooling bracket—Haul-off—Winder

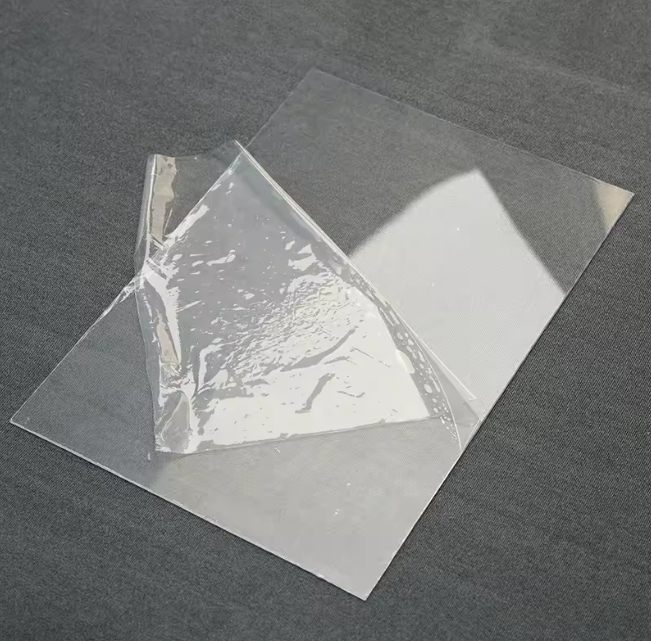

Product Features
1. Excellent Appearance
High transparency, good luster, smooth surface texture, and it can meet the aesthetic requirements of various application scenarios.
2. Outstanding Practical Performance
Strong self-adhesion, good barrier effect, can effectively isolate external influences and well protect the packaged items; it will not turn white due to stress, and has excellent foldability, and can remain intact after repeated folding.
3. Stable Quality & Durability
Chemical properties are stable, not easily corroded, and will not deteriorate even after long-term use; it also has the characteristic of low-temperature impact resistance, and will not become brittle and damaged even in low-temperature environments.
4. Exceptionally Wide Adaptability
It can be processed into different styles of products such as cylinders, boxes, and windows, and also supports single-sided / double-sided coating and size customization, meeting the diverse production needs of various industries.
Parameter (Please consult sales engineers for details)
Type of extrusion line | single screw GAG sheet extrusion line | twin screw venting GAG sheet extrusion line |
Extrusion type | Co-extruded | |
Finished Product | three-layer sheet | |
Raw material | PETG-APET-PETG | |
Net width | 600mm-1220mm and more | |
Thickness range | 0.15mm-2mm and more | |
Capacity | 200kg/h-1200kg/h and more | |
Application | Food and fruit packing,Electronic components packing,Printing ,Furniture surface and more | |
Application
1. For Vacuum Forming: It can be used for packaging food and fruits, as well as for vacuum forming of toy boxes and gift boxes. It can meet the requirements of preservation, display and protection.

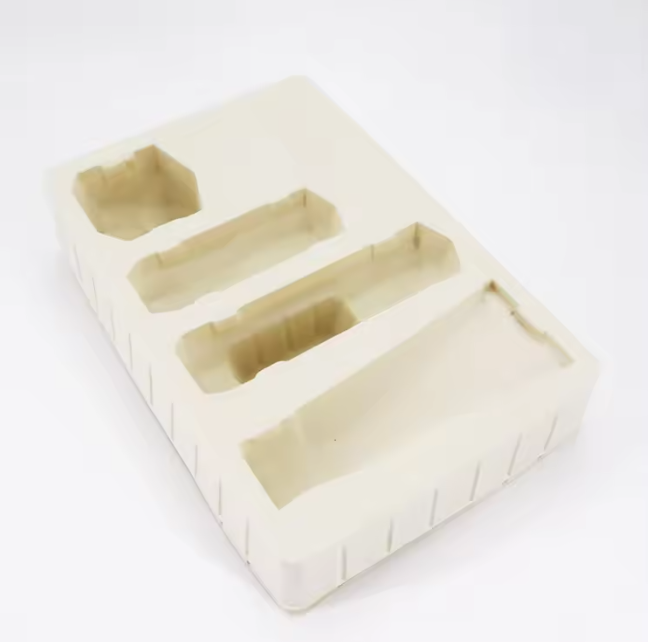

2. For Barrier Protection: Suitable for packaging electronic components. It has excellent barrier properties and can effectively prevent moisture and dust, ensuring the stability of component performance during storage and transportation.

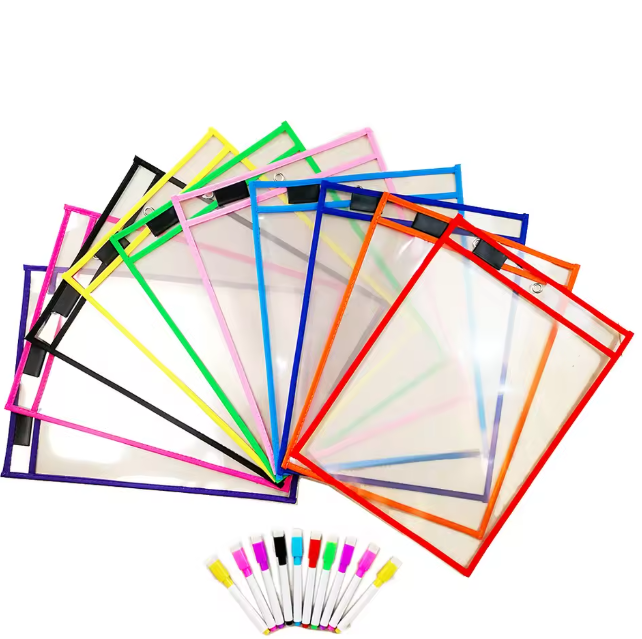

3. For Regular Processing: It can be folded and formed, and can be used for collar supports, decorative materials, as well as folders, binding covers, credit cards and other daily and office supplies.

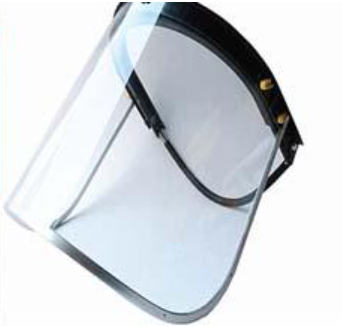

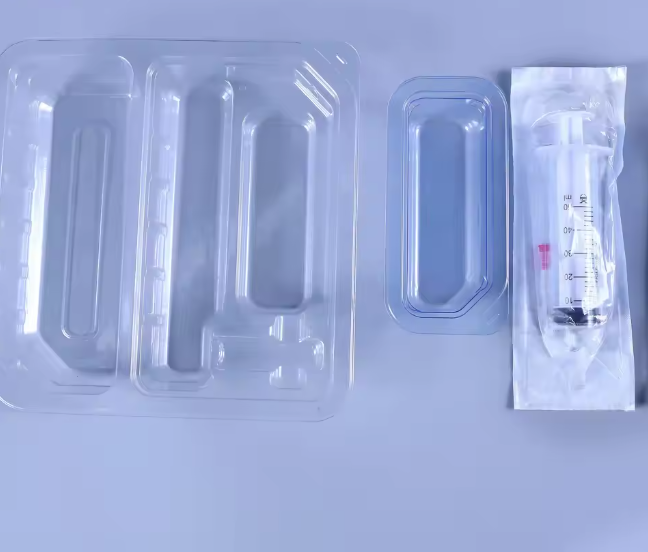

4. For Special Scenarios: It complies with the packaging standards for medical equipment and drugs. It can also be used for industrial anti-corrosion parts, microwave baking trays, and can be customized to form special products such as cylinders, boxes and windows.
About Us
GWELL was established in 2010 and is a national high-tech enterprise specialized in making polymer flat forming equipment. It has over 20 years of experience in the plastic extrusion industry. GWELL has over 100 R&D personnel at present. Relying on strong manufacturing capabilities and talent people, GWELL achieves 100% independent designing and manufacturing of key components, and its annual production capacity reaches over 2,000 production lines.
There are more than 300 sets of advanced processing equipment. The single piece lifting capacity of workshop is up to 32 tons. We can produce heavy-duty extrusion equipment with a width of more than 8 meters and has an annual output of more than 2,000 sets of flat forming equipment for various types of plates, sheets, and films. Production capacity of the PET Sheet Extrusion Line can reach 1 ton per hour, and the PP sheet material production capacity can reach 900 kilograms per hour.
GWELL delivered more than 5,000 sets of flat forming equipment to the global customers. RENEWABLE RESOURCES, CSIQ, HIUV, LUSHAN and SVECK are all loyal partners of GWELL. Annual sales volume has been more than 1 billion yuan in making polymer flat forming equipment for three years and products are sold in more than 60 countries and regions around the world, including Russia, Spain, Turkey, Iran, South Korea, Indonesia, India, Japan, Germany and South America.
Certifications:
CE Certificate
Certificate No.: M.2020.103.UY1236
Certificate No.: MD-17-272-1
Patent Certificate
Certificate Name: Panel Cutting Machine with Debris Recycling Mechanism
Certificate No.: ZL 2022 2 2718667.8
Certificate Name: A Tension Adjustment Device for Plastic Film Production
Certificate No.: ZL 2024 2 3236677.3
Certificate Name: Standard-length Cutting Equipment for PET Sheet Extrusion Line
Certificate No.: ZL 2021 2 1379038.6
FAQ
1. How Do You Make The Quotation For Client?
Please offer the following information, so we can give you price and our advice as extruder manufacturers: Products dimension/material/ capacity requirement you want to produce. If you can also send us photos of your samples, it would be highly appreciated.
2. About Our After Sales?
After customers pick up the goods, our company will arrange 1-2 debugging personnel to go to the site for installation and debugging, and guide the on-site staff of customers on how to operate our production line. The quality guarantee period of the equipment is one year, and we will provide preferential maintenance services for the whole life.
3. How long is the delivery date?
Usually it takes about 90 days depends on different machinery upon receipt of order advance payment.
