PC PMMA Optical Sheet Extrusion Line Features
1. Excellent Optical Quality, Ultra-Precise Molding
The dedicated mixing screw can minimize crystal spots and maximize the optical transparency of the sheet; the double-throttle T-shaped die head can precisely control the thickness of the sheet.
2. Fine Adjustment & Customization
The temperature control accuracy of the three-roll calender can reach ±1℃. The plasticization degree, sheet thickness, surface flatness and gloss can all be precisely adjusted. For different production materials, GWELL can also customize dedicated calenders to optimize production efficiency and product quality.
3. Stable Melt Flow & Quality Monitored in Real Time
The extrusion system integrates a precision melt pump and T-shaped die head, which can ensure the melt flow is always stable and uniform, and the optical performance of the sheet is more guaranteed; the accompanying real-time thickness scanner will immediately provide data feedback, controlling the product quality throughout the process and preventing quality deviations.
4. Intelligent Operation & High Production Efficiency

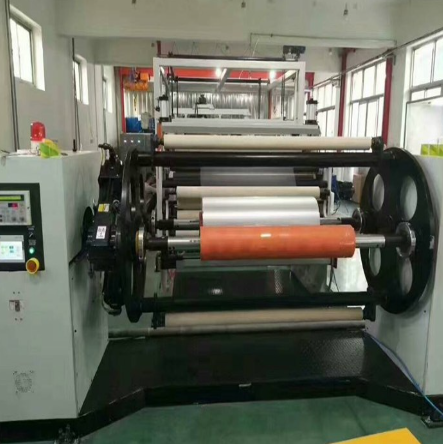

The configuration of the storage cylinder with tension monitor can support high-speed and stable production; the upgraded automatic winding machine with correction system can complete winding and cutting automatically, and the finished products can be neatly collected, reducing manual operations while maintaining stable product quality.
5. Performance at International Standards, High Cost-Effectiveness
The equipment is patented design, meeting international advanced standards. It performs well in production efficiency, intelligence, safety and operational reliability. It is a high-cost-performance alternative to imported equipment, with outstanding performance and better cost-effectiveness.
PC PMMA Optical Sheet Extrusion Line Process Flows

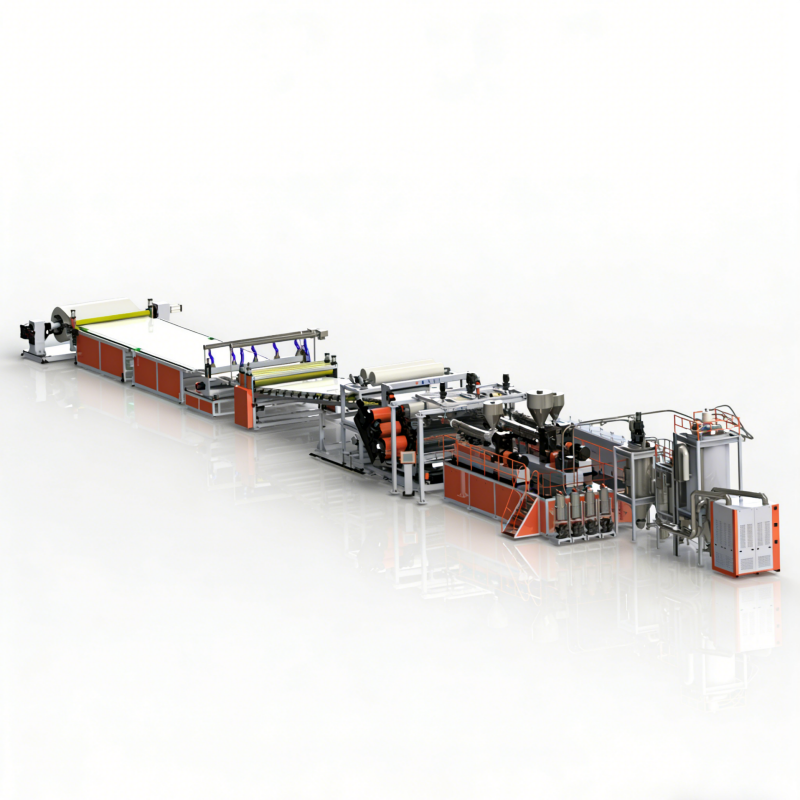

Extruder—Screen changer—Melt pump—T-die—Calender—Cooling bracket—Haul-off—Winder
Product Features
1. Excellent Optical Effect & Ultra-Precise Dimensions
The special screw for this extrusion production line is designed for mixing materials, which can maximize the transparency of the sheet and significantly reduce the number of crystalline spots; combined with a dual-throttle die head and a real-time thickness scanner for continuous monitoring, the thickness of the sheet can be made uniform and consistent.
2. Excellent Surface Texture & Ultra-Stable Performance
The temperature control accuracy of the three-roll calender can reach ±1℃. It can also be customized for different materials. The flatness and glossiness of the sheet are particularly outstanding; the melt delivery is precise, the process control is strict, and the mechanical and physical properties of the sheet are particularly reliable.
3. Stable Batch Quality & Unified Standards
4. Strong Adaptability & Suitable for High-End Scenarios
The production line can be customized for different materials and has been optimized according to world-class standards. The produced sheets are suitable for various high-end optical scenarios, such as display panels, lighting covers, and optical lenses.
5. High Production Efficiency & Good Compatibility
The production line is equipped with storage cylinders, high-speed automatic winding machines, and an intelligent automation system. It can achieve high-speed and stable sheet production, ensuring product quality while also taking into account production efficiency.
Parameter (Please consult sales engineers for details)
Type | PC optical sheet extrusion line | PMMA optical sheet extrusion line |
Width of Products | 600mm-1220mm | 600mm-1220mm |
Thickness of Products | 0.125mm-2mm | 0.6mm-3mm |
Output | 200kg/h-450kg/h | 300kg/h-550kg/h |
Type of extrusion line | single screw sheet GAG extrusion line | twin screw venting GAG sheet extrusion line |
Extrusion type | Co-extruded | |
Finished Product | three-layer sheet | |
Raw material | PETG-APET-PETG | |
Net width | 600mm-1220mm and more | |
Thickness range | 0.15mm-2mm and more | |
Capacity | 200kg/h-1200kg/h and more | |
Application | Food and fruit packing,Electronic components packing,Printing ,Furniture surface and more | |
Application
1. Transportation and Automotive Industry
Automotive components, car and motorcycle windshields; aircraft, train, ship, and submarine windshields, as well as transparent containers for aviation use.
2. Electronics and Instrumentation Industry
Film switches, computers / mobile phones / commercial liquid crystal displays, LED panels for electronic displays; various test panels, piping systems, safety glass, writing boards, and accessories for slide projection equipment.
3. Protective Equipment and High-Tech Fields

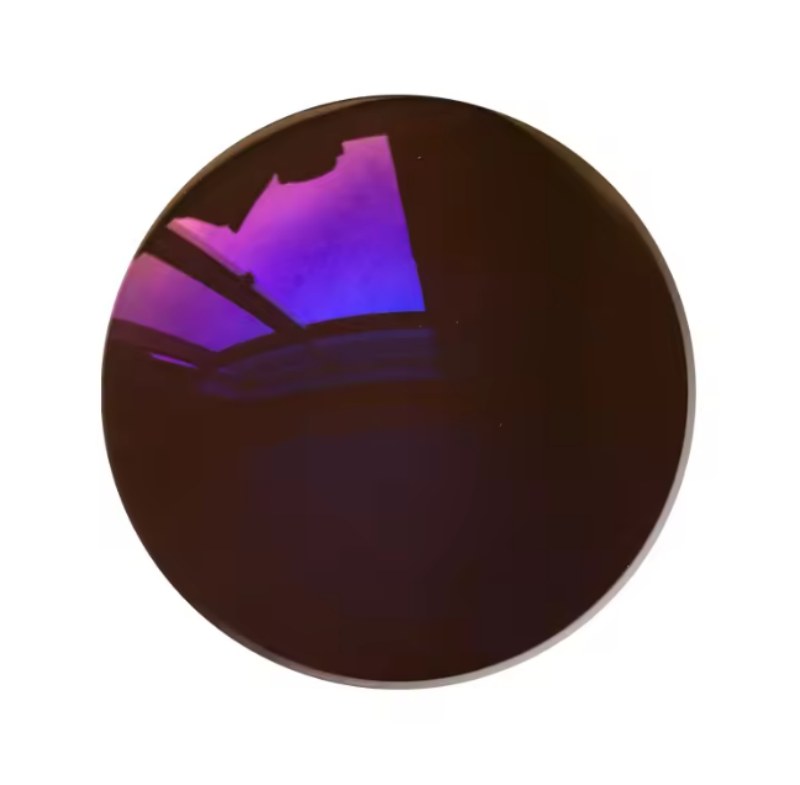

Sunglasses, sun hats, coated glasses, protective masks, military and police shields, anti-theft and bulletproof facilities; aerospace-related components, optical fibers, optical discs, and various precision electronic components.
4. Construction and Advertising Industry
High-end interior decoration materials, such as walls, roofs, screens; sound barriers for highways and urban roads, engineering sound barriers, ceiling lighting, greenhouses for agriculture and livestock, tunnel lighting; as well as advertising signs, light box advertisements, and exhibition layout and booth decorations.
5. Leisure Entertainment and General Fields
Decoration for gardens and entertainment venues, pavilions and rest areas in exhibition halls; special printing, resin boards, basketball courts, medical packaging, and various industrial products.
About Us
GWELL was established in 2010 and is a national high-tech enterprise specialized in making polymer flat forming equipment. It has over 20 years of experience in the plastic extrusion industry. GWELL has over 100 R&D personnel at present. Relying on strong manufacturing capabilities and talent people, GWELL achieves 100% independent designing and manufacturing of key components, and its annual production capacity reaches over 2,000 production lines.
There are more than 300 sets of advanced processing equipment. The single piece lifting capacity of workshop is up to 32 tons. We can produce heavy-duty extrusion equipment with a width of more than 8 meters and has an annual output of more than 2,000 sets of flat forming equipment for various types of plates, sheets, and films. Production capacity of the PET Sheet Extrusion Line can reach 1 ton per hour, and the PP sheet material production capacity can reach 900 kilograms per hour.
GWELL delivered more than 5,000 sets of flat forming equipment to the global customers. RENEWABLE RESOURCES, CSIQ, HIUV, LUSHAN and SVECK are all loyal partners of GWELL. Annual sales volume has been more than 1 billion yuan in making polymer flat forming equipment for three years and products are sold in more than 60 countries and regions around the world, including Russia, Spain, Turkey, Iran, South Korea, Indonesia, India, Japan, Germany and South America.
Certifications:
CE Certificate
Certificate No.: M.2020.103.UY1236
Certificate No.: MD-17-272-1
Patent Certificate
Certificate Name: Panel Cutting Machine with Debris Recycling Mechanism
Certificate No.: ZL 2022 2 2718667.8
Certificate Name: A Tension Adjustment Device for Plastic Film Production
Certificate No.: ZL 2024 2 3236677.3
Certificate Name: Standard-length Cutting Equipment for PET Sheet Extrusion Line
Certificate No.: ZL 2021 2 1379038.6
FAQ
1. What is your production capacity?
We produce more than 2000 advanced extrusion lines every year world wide.
2. What about shipping?
We can send the small spare parts by air express for urgent matter. And the complete production line by sea to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest port is China Shanghai, which is convenient for maritime transportation.
3. Trade Capacity?
International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW;
Terms of Payment: LC, T/T;
Average Lead Time: 90 days.
