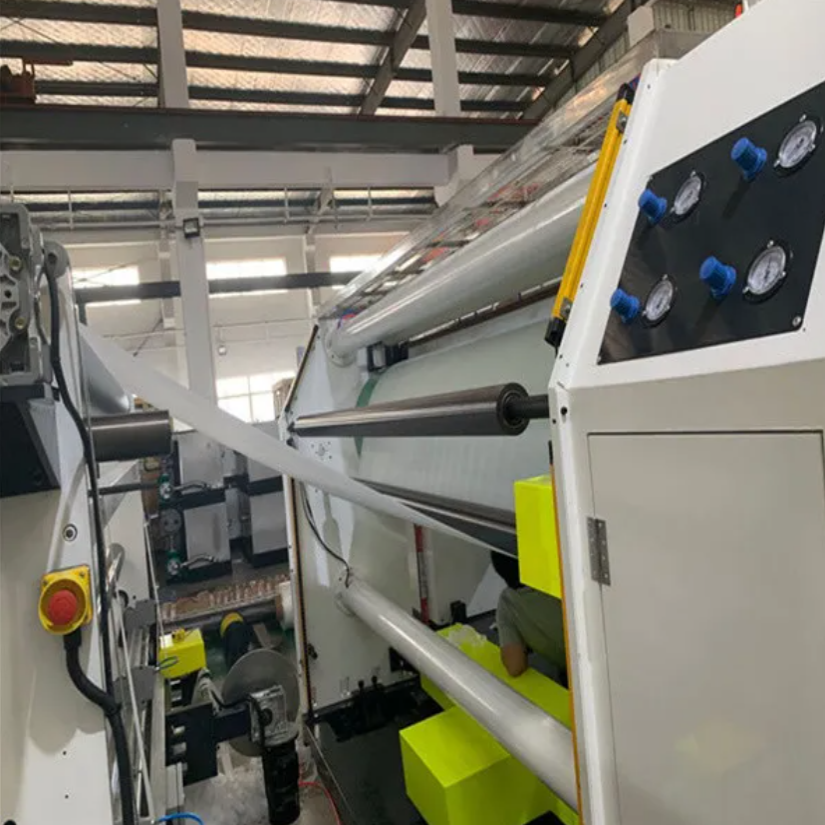

EVA POE EPE Solar Film Extrusion Line Features
1. Super-Effective Extrusion & Temperature Control
High-torque gearbox with efficient screw, ensuring extremely stable extrusion; ±1℃ constant temperature cooling, perfectly solving the problem of EVA plasticization.
2. Precise Coating, Quality Guaranteed

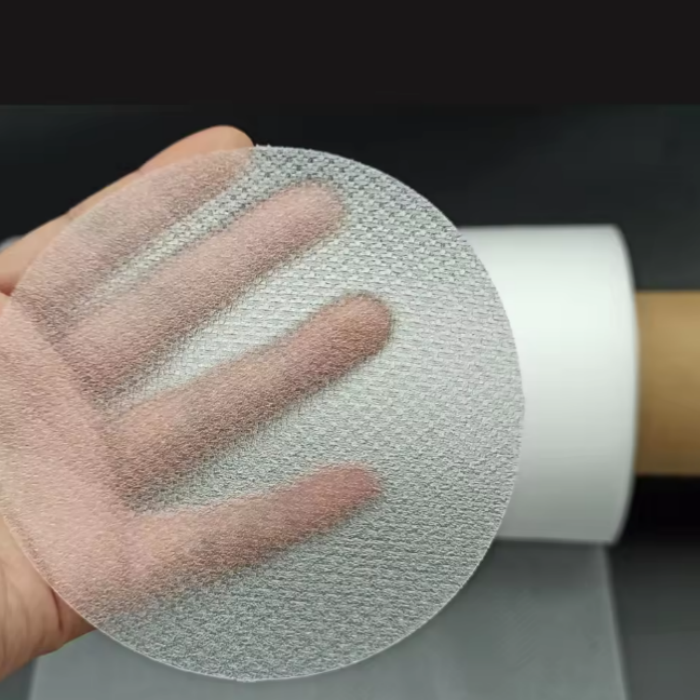

±0.1MPa high-precision melt pump combined with real-time thickness measurement, the film thickness is extremely uniform; double-sided embossing design, completely avoiding adhesion.
3. Stable Cooling, Low Shrinkage Rate
Special cooling rolls combined with stress elimination bed, controlling the shrinkage rate within 3%, the film will not warp.
4. Super Reliable Traction & Winding
Wear-resistant rubber rollers plus micro-tension winding machine, traction is stable, winding is neat, and it can effectively reduce membrane surface stress.
5. Automated Operation, High Production Efficiency
PLC system realizes full automation operation, real-time online monitoring and quality control, saving labor and reducing material waste.

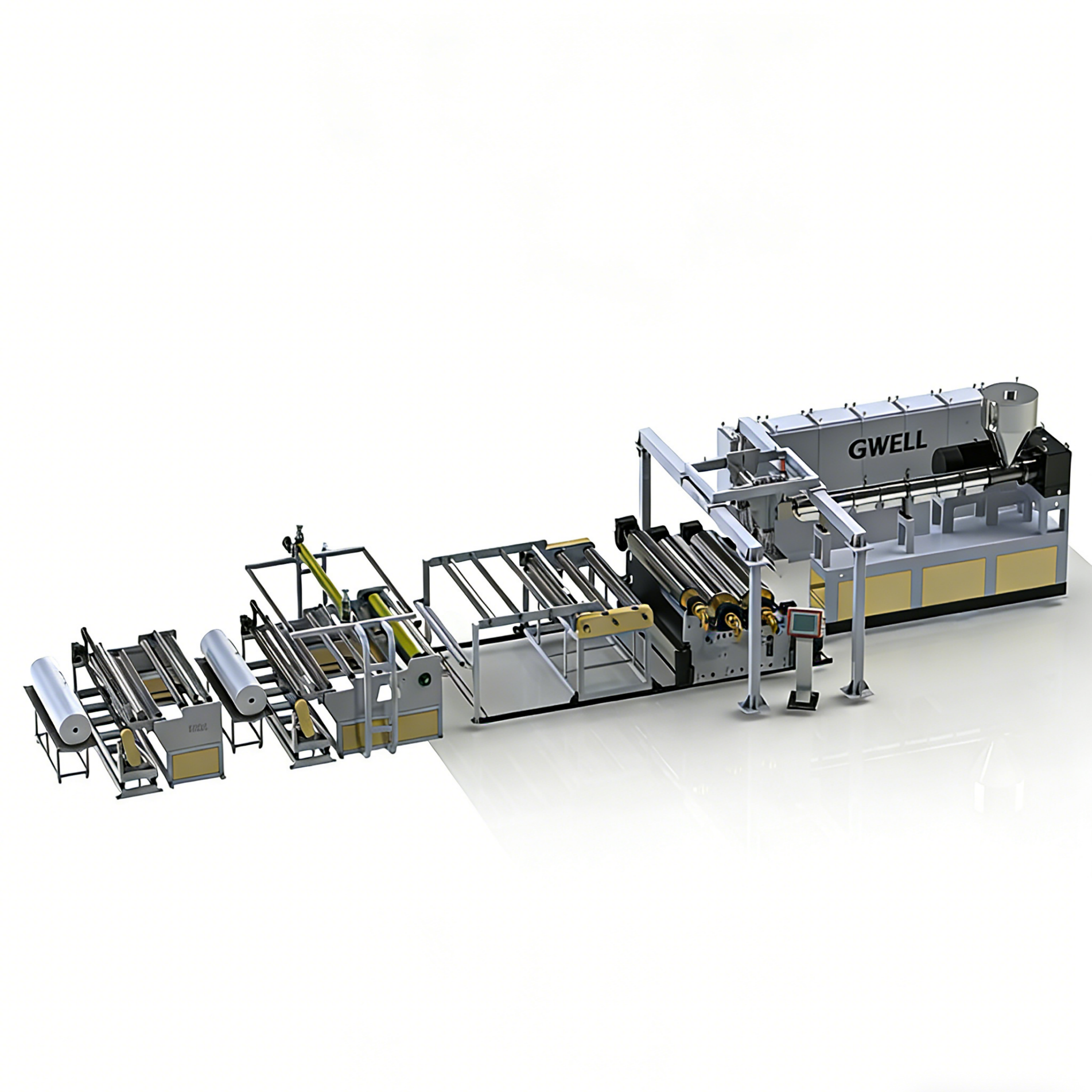

EVA POE EPE Solar Film Extrusion Line Process Flows

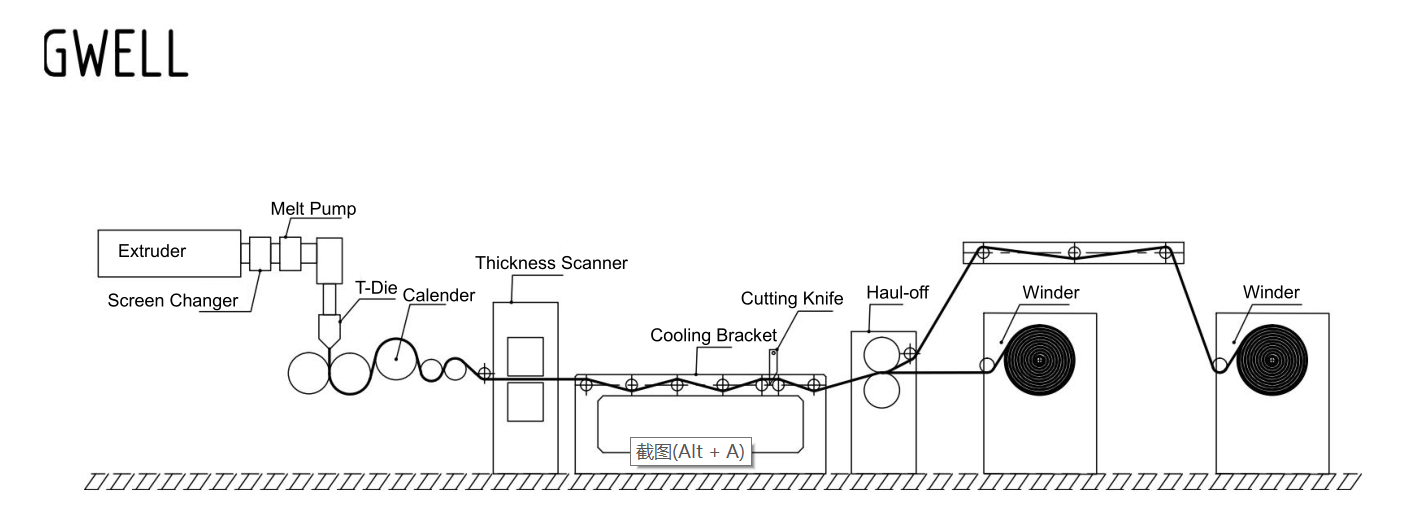

Extruder—Screen changer—Melt pump—T-die—Calender—Thickness Scanner—Cooling Bracket—Cuttting Knife—Haul-off—Winder
Product Features

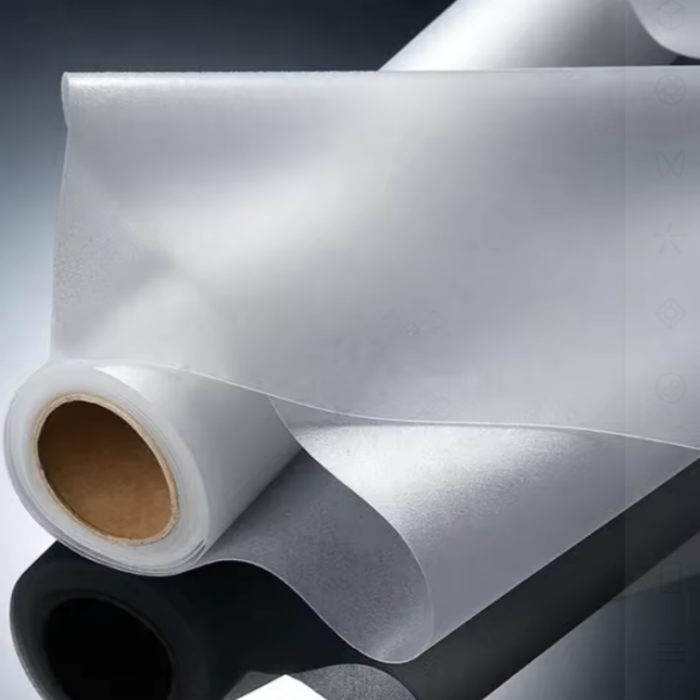

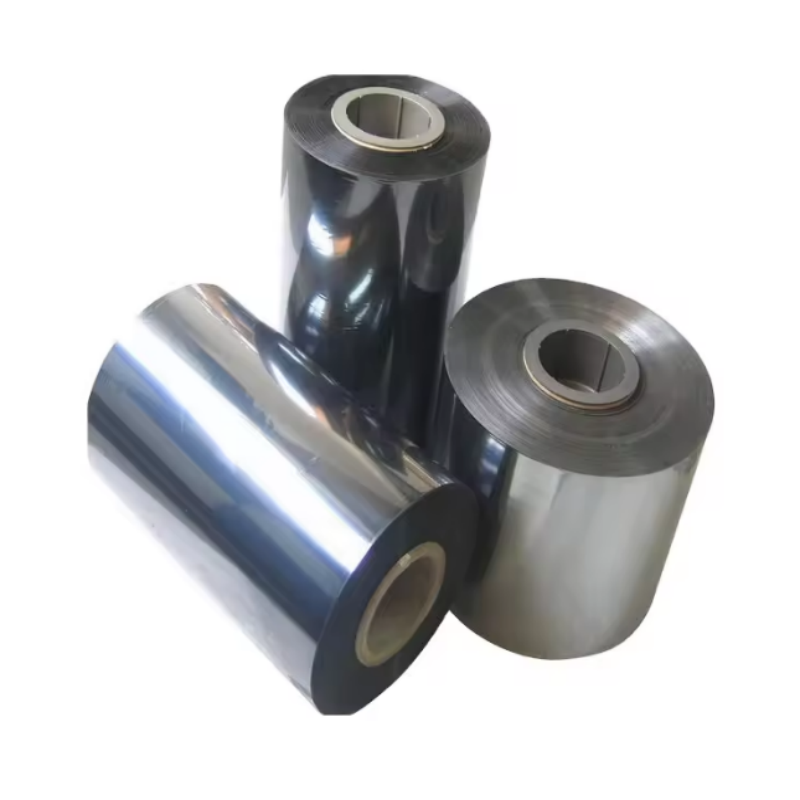

1. EVA Solar Film Features
Transparent EVA Solar Film: The light transmittance is exceptionally high, and it is specifically designed for bonding glass and solar cells. It is made by blending EVA resin with various additives. Its cost-effectiveness is outstanding.
White EVA Solar Film: Compared with the transparent version, this one has been treated with white fillers such as titanium dioxide in advance; it has strong moisture resistance and UV protection, and can directly increase the power generation of the photovoltaic module; it also has excellent resistance to humidity and heat, as well as UV aging resistance, and can effectively prevent the backsheet from aging and cracking.
2. POE Solar Film Features
The water vapor barrier is fully sealed, ensuring the long-term stable operation of the photovoltaic modules and providing extremely reliable protection.
It has stronger anti-PID (potential-induced attenuation) performance, and the components will maintain stable performance even after long-term use.
The current double-sided double-glass and thin-film photovoltaic modules are mostly encapsulated with this type of film.
3. EPE Solar Film Features
EVA-POE Synergistic Advantage: By combining the high light transmittance and high adhesion properties of EVA with the weather resistance and UV resistance characteristics of POE, the comprehensive performance is exceptionally outstanding.
Stable Structure, Highly Durable: With a structure of two EVA layers sandwiching the POE layer in the middle, it can be used stably for a long time even in high-temperature, high-humidity, and strong UV environments.
High Performance & Cost-Effective: The material combination is scientifically reasonable, ensuring top-level performance while effectively controlling production costs, resulting in excellent value for money.
Wide Application Scenarios: Not only can it be used for solar cell encapsulation, but it can also be applied in various scenarios such as building materials, with extremely strong versatility.
Parameter (Please consult sales engineers for details)
Extruder Type | Co-extrusion GWS160+GWS160 | Co-extrusion GWS180+GWS160 | Co-extrusion GWS180+GWS180 |
Raw material | EVA, POE | ||
Layers | EVA, POE, EVA/POE/EVA three layers（EPE） | ||
Net width | 2200mm-2600mm | ||
Thickness range | 0.2mm-1mm | ||
Max linear speed | 15m/min-18m/min | ||
Application | EVA、POE、EPE film for solar encapsulation | ||
Application

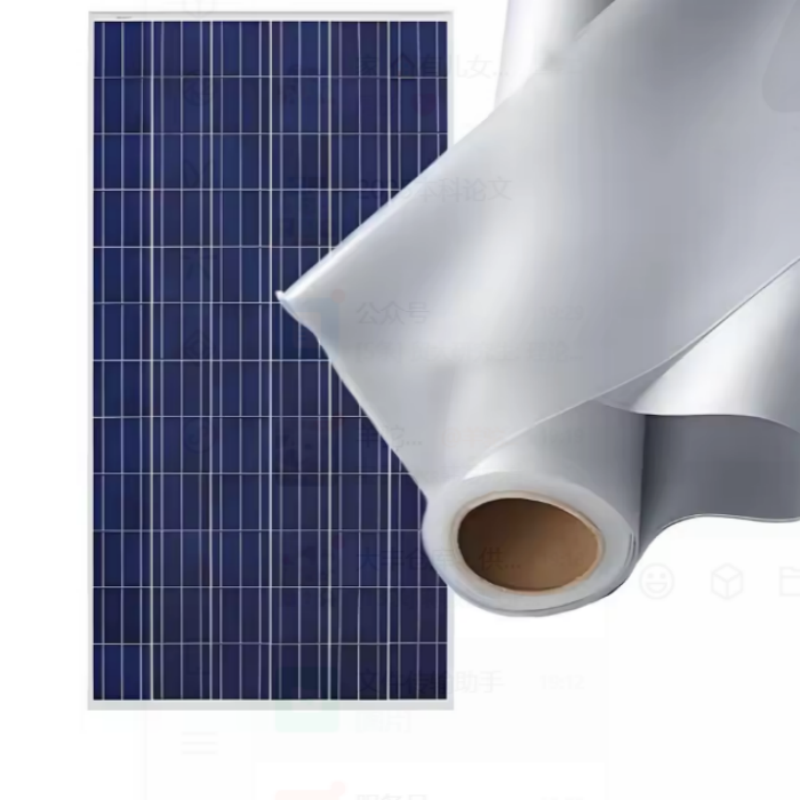

1. EVA Soalr Film
It is mainly used in the encapsulation of conventional photovoltaic modules (such as monocrystalline silicon, polycrystalline silicon, PERC, etc.). It can be applied to both ordinary ground-based photovoltaic power stations and distributed photovoltaic systems in homes or industrial/commercial settings. It is particularly suitable for scenarios where cost control is desired and only basic encapsulation effect is required.
2. POE Solar Film
It is the core encapsulation material for high-end photovoltaic modules (double-sided double-glass, thin film, N-type TOPCon/HJT); it is particularly suitable for projects in harsh environments such as coastal areas, high humidity, and high altitudes, as well as high-end photovoltaic projects that require a lifespan of over 30 years.
3. EPE Solar Film
It focuses on balancing cost and performance. It can be applied to inland distributed photovoltaic systems, mid-range ground-based power stations, as well as entry-level double-sided modules. It is suitable for medium-sized usage environments.
About Us
GWELL was established in 2010 and is a national high-tech enterprise specialized in making polymer flat forming equipment. It has over 20 years of experience in the plastic extrusion industry. GWELL has over 100 R&D personnel at present. Relying on strong manufacturing capabilities and talent people, GWELL achieves 100% independent designing and manufacturing of key components, and its annual production capacity reaches over 2,000 production lines.
There are more than 300 sets of advanced processing equipment. The single piece lifting capacity of workshop is up to 32 tons. We can produce heavy-duty extrusion equipment with a width of more than 8 meters and has an annual output of more than 2,000 sets of flat forming equipment for various types of plates, sheets, and films. Production capacity of the PET Sheet Extrusion Line can reach 1 ton per hour, and the PP sheet material production capacity can reach 900 kilograms per hour.
GWELL delivered more than 5,000 sets of flat forming equipment to the global customers. RENEWABLE RESOURCES, CSIQ, HIUV, LUSHAN and SVECK are all loyal partners of GWELL. Annual sales volume has been more than 1 billion yuan in making polymer flat forming equipment for three years and products are sold in more than 60 countries and regions around the world, including Russia, Spain, Turkey, Iran, South Korea, Indonesia, India, Japan, Germany and South America.
Certifications:
CE Certificate
Certificate No.: M.2020.103.UY1236
Certificate No.: MD-17-272-1
Patent Certificate
Certificate Name: Panel Cutting Machine with Debris Recycling Mechanism
Certificate No.: ZL 2022 2 2718667.8
Certificate Name: A Tension Adjustment Device for Plastic Film Production
Certificate No.: ZL 2024 2 3236677.3
Certificate Name: Standard-length Cutting Equipment for PET Sheet Extrusion Line
Certificate No.: ZL 2021 2 1379038.6
FAQ
1. How can I order?
Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and Proforma Invoice to you.
2. What is your Minimum Order Quantity?
One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical innovation or improvements for your future purchasing plan.
3. What is your production capacity?
We produce more than 2000 advanced extrusion lines every year world wide.
