ETFE PFA PEEK Film Extrusion Line Features
1. Professional High-Performance Extruder
GWELL is a well-established domestic manufacturer of plastic extruders. The extruder used in this production line is made of special high-temperature-resistant and corrosion-resistant steel, and can stably process fluoroplastics such as ETFE, PFA, and PEEK, which have extremely high requirements for production conditions.
2. Customized Design through School-Enterprise Cooperation
GWELL collaborates with universities to tailor the screw and mold structure based on the characteristics of fluoroplastics. Combined with professional processes such as molding and winding, this enables fluoroplastics films to achieve standardized and series-based large-scale production.
3. User-Friendly Safety Control System
The entire production line is equipped with practical and reasonable configurations, featuring PLC touch screen control + overall interlock control. GWELL’s thoughtful design makes the equipment operation simple and the safety level high, ensuring the safety of industrial production.
ETFE PFA PEEK Film Extrusion Line Process Flows

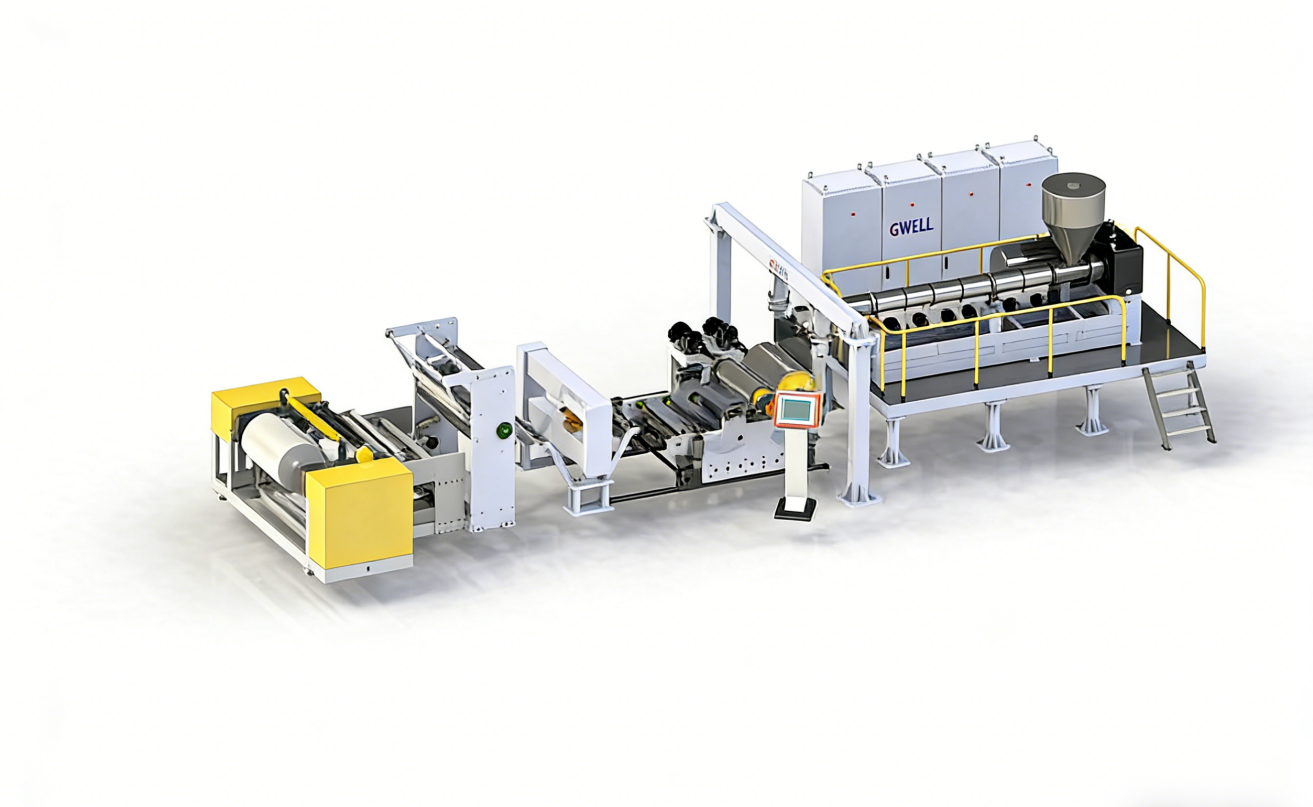

Extruder—Screen changer—Melt pump—T-die—Calender—Thickness Scanner—Cooling Bracket—Cutting Knife—Haul-off—Winder
Product Features

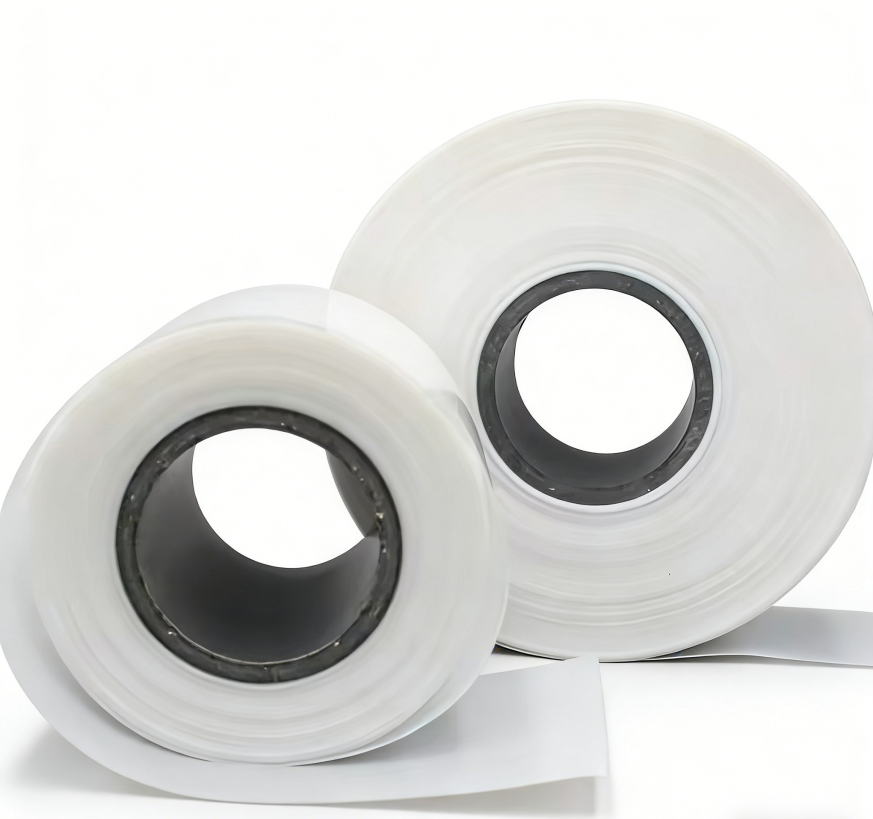

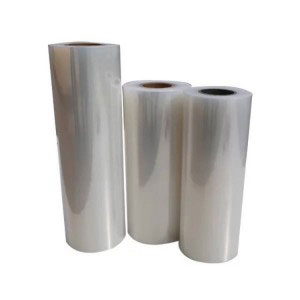

1. GWELL’s ETFE fluorine film supports customized specifications. The thickness ranges from 20 to 40 μm, and the maximum width is 1300mm. The production line speed can be 8-30m/min. This high-quality transparent building material has inherent self-cleaning, anti-aging, and corrosion-resistant properties. Its service life can reach 25-35 years. It also has a high fire resistance rating, with a light transmittance of over 90%. Moreover, the material is recyclable, which is environmentally friendly and makes maintenance in the future hassle-free.

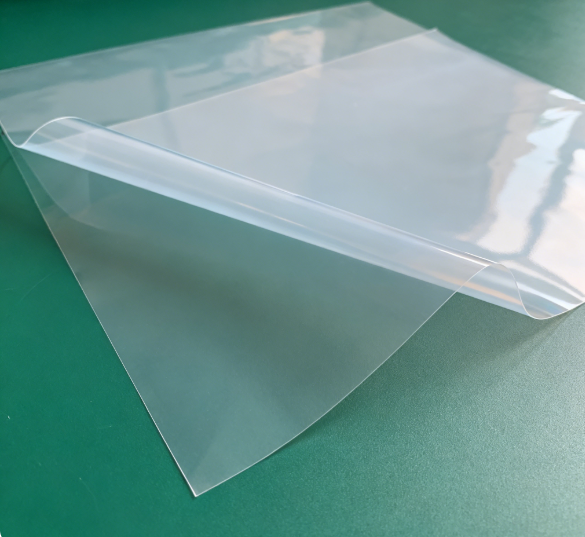

2. This PFA non-stick film is made of fluoropolymer. When heated, it will melt and spread, forming a film without pores, with properties similar to FEP films. Its chemical stability is particularly excellent, and the non-stick effect is also superb. It can withstand a continuous temperature of 260℃, which is higher than that of FEP materials. It also has better toughness and rigidity, making it perfectly suitable for meeting the requirements of high-temperature non-stick and chemical corrosion resistance.

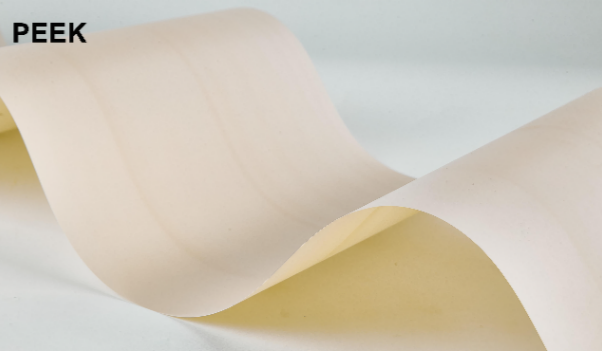

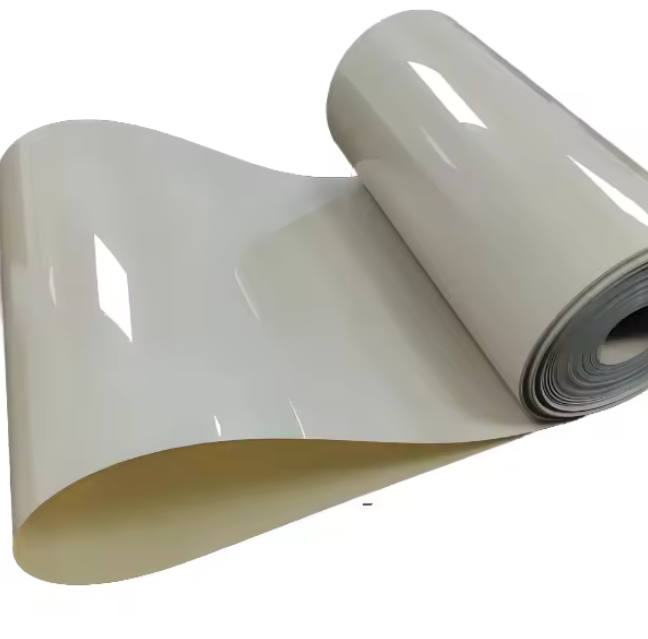

3. This PEEK film is a semi-crystalline high-performance special film. It is resistant to high temperatures, lightweight, and has excellent mechanical durability. It can resist radiation, hydrolysis, chemical corrosion, and has excellent insulation and wear resistance properties. It also has the characteristics of low toxicity, no halogen, and flame retardancy. It is also very easy to process and can be adapted to various high-demand application scenarios.
Parameter (Please consult sales engineers for details)
Extruder Type | GWS65 | GWS90 |
Raw material | ETFE, FEP, PEEK, PFA | |
Net width | 1250mm | 1600mm |
Thickness range | 0.02-0.2mm | |
Capacity | 100-150kg/h | 150-200kg/h |
Application

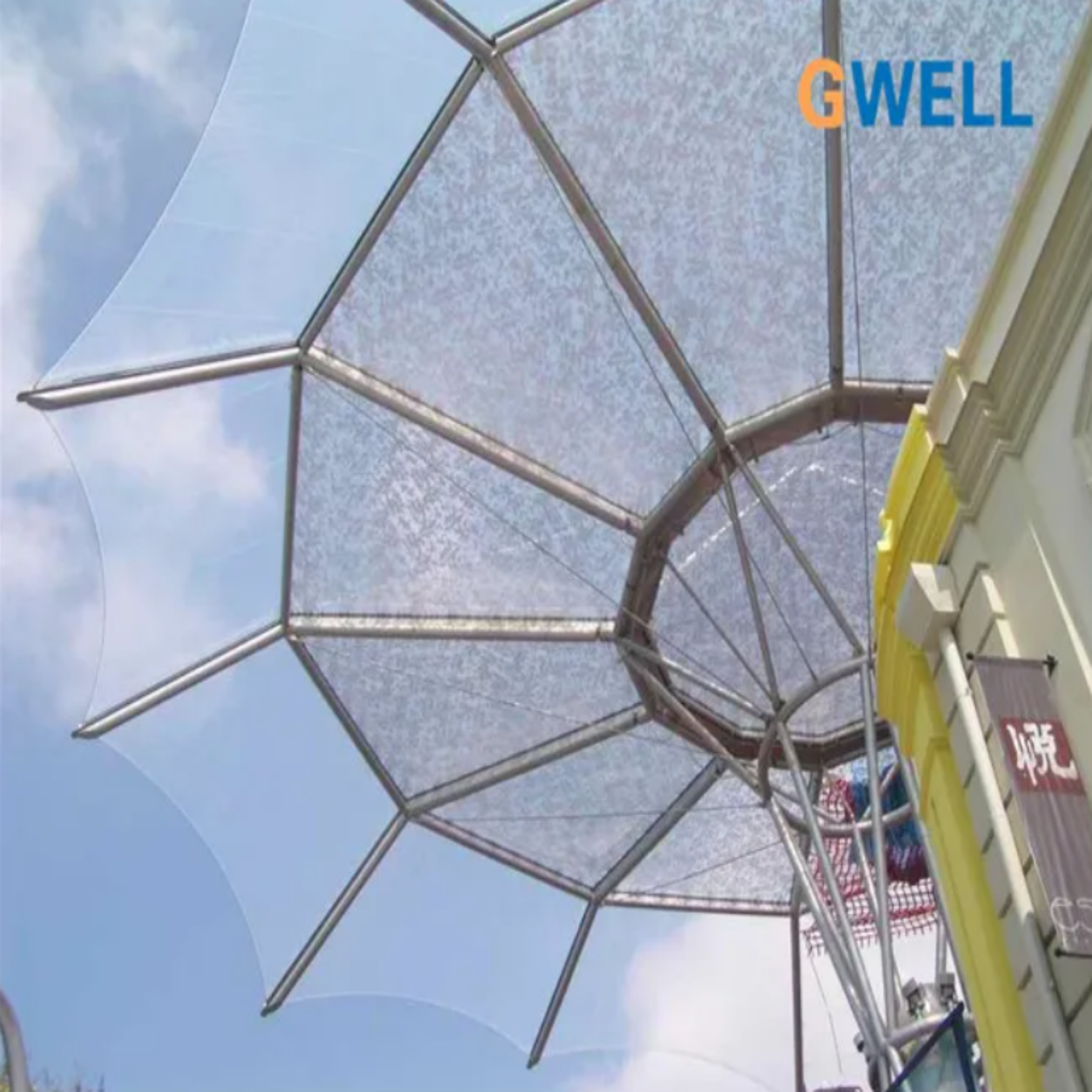

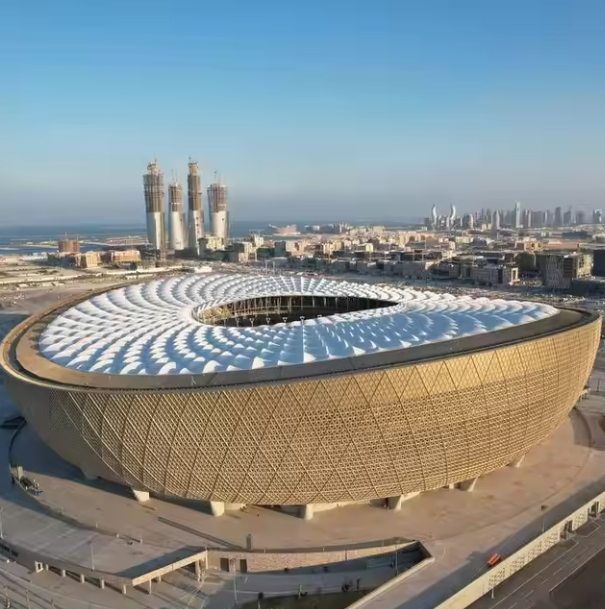

1. This ETFE film has a thickness of no more than 0.20 millimeters and can be used for over 20 years. It is a commonly used transparent material in membrane structures. The Eden Garden project in the UK and the 110,000-square-meter air cushion of the Beijing Water Cube both used it. Currently, it is increasingly being used as a curtain wall and roof material worldwide. It can also be applied in industries such as automobiles, packaging, batteries, food, solar energy, electronics, and medicine.
2. This PFA film has an extremely wide temperature tolerance range, capable of being used continuously from -200℃ to 260℃. It cannot be corroded by strong acids, strong bases, or any kind of organic substances. Moreover, it has high transparency and excellent insulation properties, and has even obtained FDA certification. It is widely used in various fields such as semiconductor packaging in the electronics industry, PCB covering films, inner linings of chemical storage tanks, sterilization conveyors and packaging in the food and pharmaceutical industries, as well as in high-end sectors like aerospace and new energy.
3. PEEK film, hailed as the “golden material of engineering plastics”, boasts -196℃~250℃ ultra-high temperature resistance, exceptional mechanical strength, radiation resistance, and biocompatibility. Perfect for extreme environments, it’s widely used in medical/healthcare, aerospace, electronics/semiconductors, and high-end industries like nuclear and automotive.
The extrusion lines for ETFE, PFA and PEEK films can all be customized according to the requirements of customers in terms of specific specifications.
About Us
GWELL was established in 2010 and is a national high-tech enterprise specialized in making polymer flat forming equipment. It has over 20 years of experience in the plastic extrusion industry. GWELL has over 100 R&D personnel at present. Relying on strong manufacturing capabilities and talent people, GWELL achieves 100% independent designing and manufacturing of key components, and its annual production capacity reaches over 2,000 production lines.
There are more than 300 sets of advanced processing equipment. The single piece lifting capacity of workshop is up to 32 tons. We can produce heavy-duty extrusion equipment with a width of more than 8 meters and has an annual output of more than 2,000 sets of flat forming equipment for various types of plates, sheets, and films. Production capacity of the PET Sheet Extrusion Line can reach 1 ton per hour, and the PP sheet material production capacity can reach 900 kilograms per hour.
GWELL delivered more than 5,000 sets of flat forming equipment to the global customers. RENEWABLE RESOURCES, CSIQ, HIUV, LUSHAN and SVECK are all loyal partners of GWELL. Annual sales volume has been more than 1 billion yuan in making polymer flat forming equipment for three years and products are sold in more than 60 countries and regions around the world, including Russia, Spain, Turkey, Iran, South Korea, Indonesia, India, Japan, Germany and South America.
Certifications:
CE Certificate
Certificate No.: M.2020.103.UY1236
Certificate No.: MD-17-272-1
Patent Certificate
Certificate Name: Panel Cutting Machine with Debris Recycling Mechanism
Certificate No.: ZL 2022 2 2718667.8
Certificate Name: A Tension Adjustment Device for Plastic Film Production
Certificate No.: ZL 2024 2 3236677.3
Certificate Name: Standard-length Cutting Equipment for PET Sheet Extrusion Line
Certificate No.: ZL 2021 2 1379038.6
FAQ
1. Can I go on a field trip to the GWELL factory?
At the same time, the factory can take you to the customer to visit the actual production situation. For small plastic extrusion equipment, our factory provides on-site training services, on-site learning equipment principles, installation, operation, maintenance and other knowledge.
2. What are the services for purchasing equipment at GWELL?
Test the machine before and after delivery, assist in the installation of equipment at the customer’s site, and provide equipment use training.
In addition to providing equipment, GWELL also provides formulations, technologies and resources.
Equipment remote diagnosis and maintenance system, we have experienced technicians to cooperate and assist maintenance at any time.
GWELL has enough spare parts in stock and can quickly deliver the wearing parts to help resume production in a short time.
3. What types of plastic extrusion machines are available from GWELL?
GWELL is a well-known custom manufacturer of casting machines, sheet machines, laminating machines, film machines, and plastic extrusion machinery in China.
