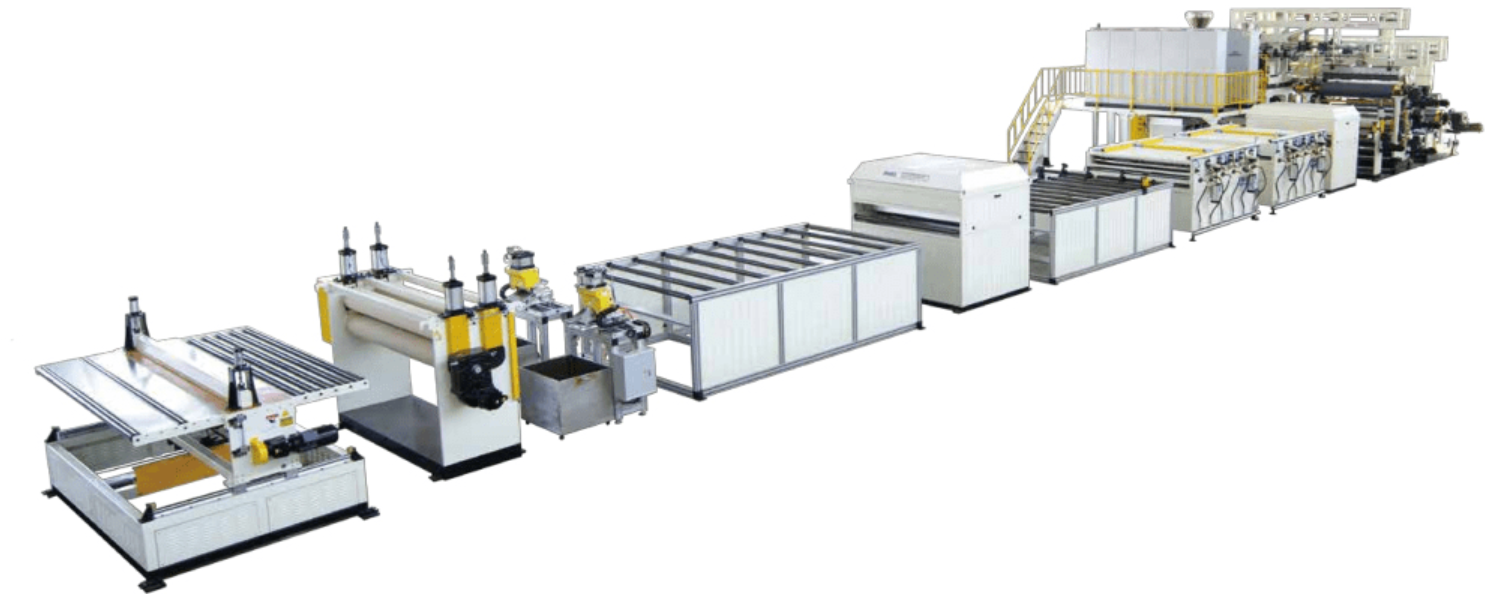

PP Honeycomb Board Extrusion Line Features
1. 6 High-Efficiency Extruders
Equipped with 6 extruders, it can produce PP honeycomb boards with high output and stable production, easily meeting the demands of large-scale production.
2. Customizable Multi-Layer Production
Breaking the traditional production limitations, it can flexibly customize multi-layer boards, with options for layer count, thickness, and material combination; it can also efficiently produce single-layer extrusions, adapting to the diverse demands of the market.
3. Intelligent Automation Control
Equipped with advanced PLC and HMI systems, it realizes the full-process automation from raw material feeding to product output; it also has functions such as self-diagnosis of faults, real-time monitoring, and remote control, which can enhance production efficiency and ensure stable product quality.
4. High-Efficiency Energy-saving Design
Using energy-saving screws and precise temperature control, it not only makes the material plasticize more evenly but also reduces energy consumption and heat loss, meeting the requirements of sustainable development.

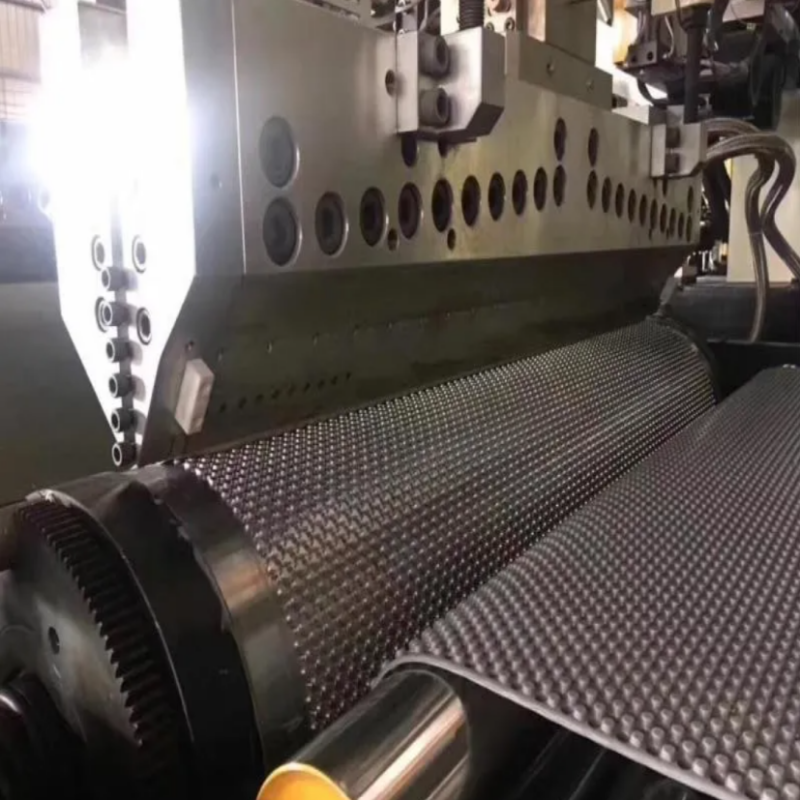

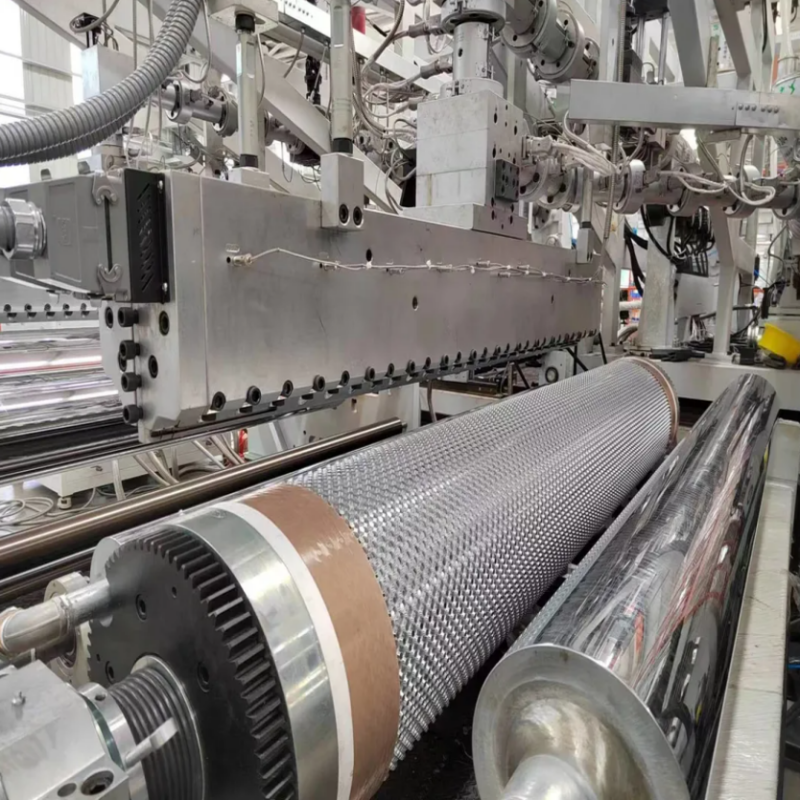

5. High-Quality Output & Quick Mold Change
Relying on precise molds and stable extrusion control, the PP honeycomb boards produced have high flatness, good structural strength, and excellent heat insulation and sound insulation effects; it is also equipped with a rapid mold change system, which can shorten the mold change time and quickly adapt to market changes.

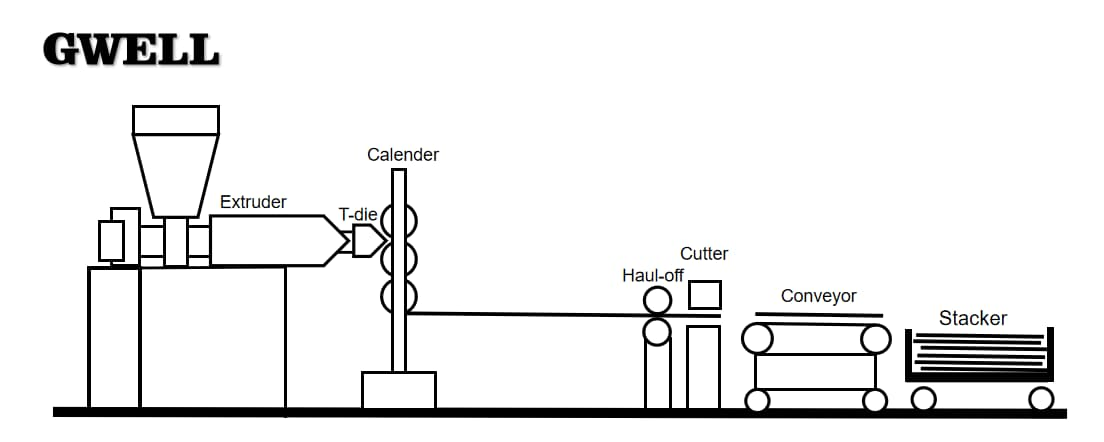

PP Honeycomb Board Extrusion Line Process Flows
Extruder—T-die—Calender—Haul-off—Cutter—Conveyor—Stacker

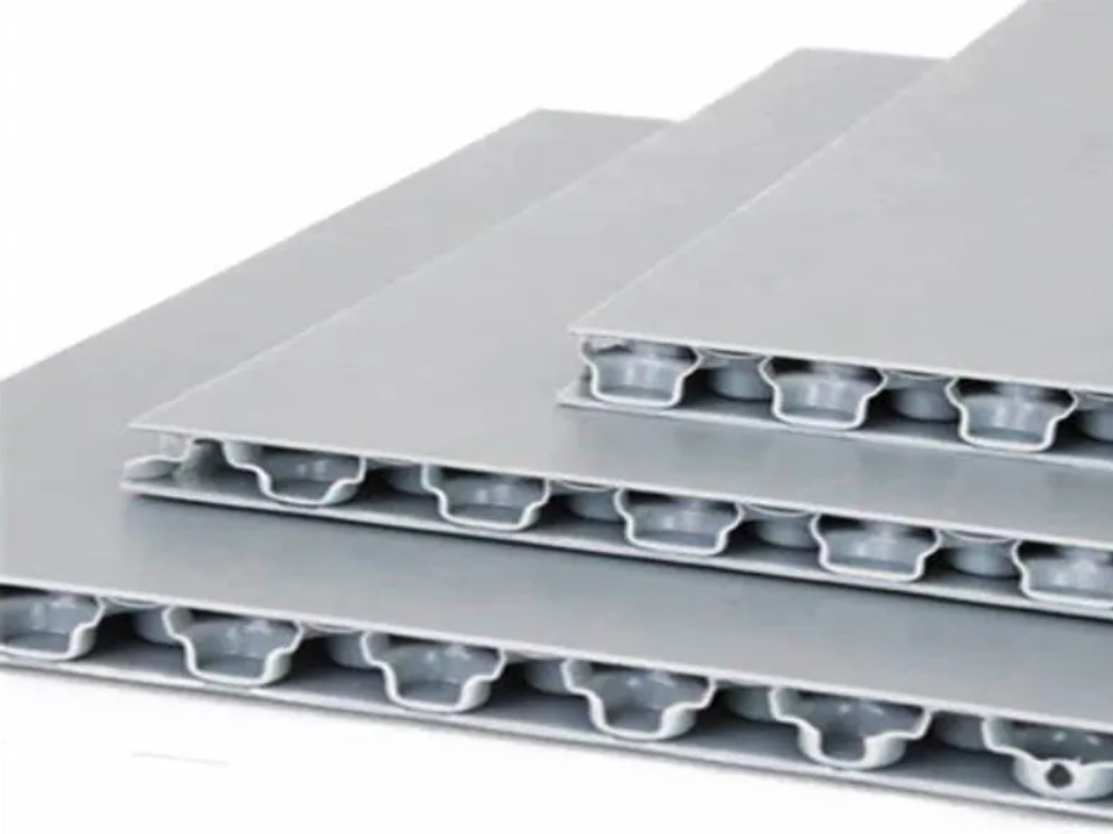

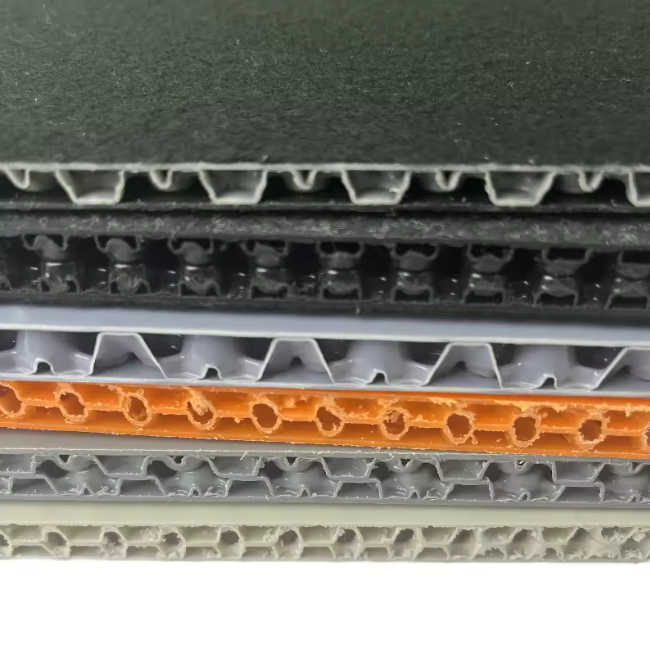

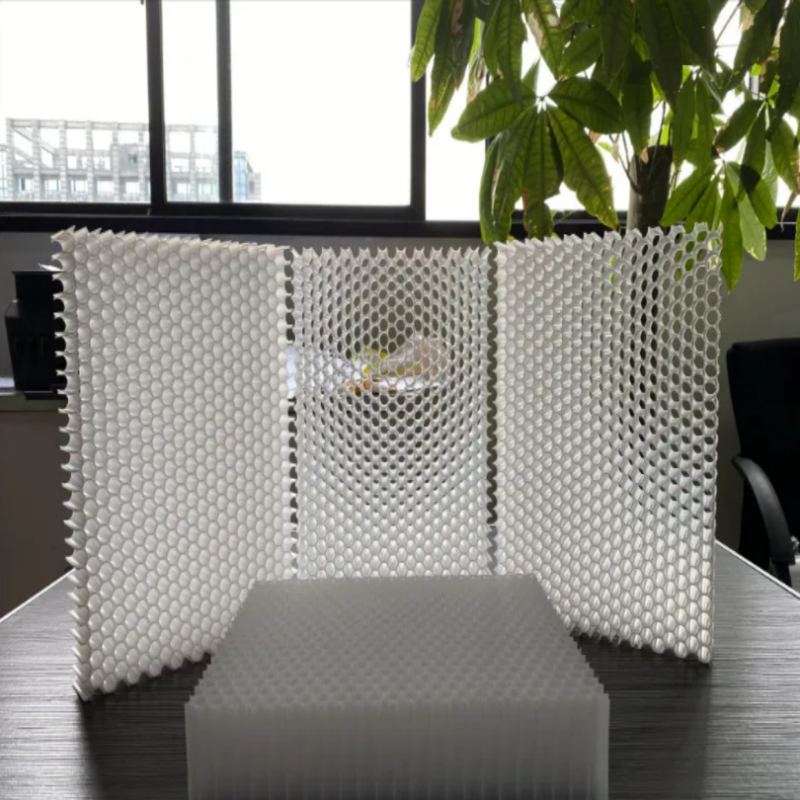

Product Features
1. Moisture-Proof & Corrosion-Resistant
This type of board can resist moisture and corrosion for a long time. After adding different plastic additives, it can also achieve additional functions such as UV resistance and fire retardancy.
2. High Pressure and Impact Resistance, Sturdy & Durable
The board has strong resistance to pressure and impact. The honeycomb structure of polypropylene can effectively absorb external forces, reducing damage caused by impacts and collisions.
3. Lightweight Design, Cost-Saving & Efficiency-Enhancing
The board itself is very lightweight, which can reduce the load of transportation vehicles, optimize transportation operation efficiency, and significantly reduce transportation costs.
4. Excellent Sound Insulation Effect, Creating a Quieter Environment
The sound insulation performance of the board is particularly good, effectively reducing the diffusion and transmission of sound waves, creating a quieter usage environment.
5. Excellent Heat Insulation, Maintaining Stable Temperature
The heat insulation effect of the board is excellent, efficiently blocking heat transfer, allowing the temperature of the usage environment to remain stable.
6. Waterproof & Resistant to Corrosion
Based on the inherent characteristics of the raw materials, the board can be used for a long time in high humidity and corrosive environments without performance degradation.
Parameter (Please consult sales engineers for details)
Extruder Type | GWS75/75/75, GWS100/100/100, and more |
Raw material | PP, PC, and more |
Net width | 1200-2000mm |
Thickness range | 2-20mm |
Capacity | 350-700kg/h |
Application | In the car industry, aerospace, yachts and ships, rail transit, logistics and transportation, building decoration, human body protection, etc
|
Application
The pp honeycomb boards produced by this extrusion production line are mainly used in two major fields:
1. Automotive Industry: They can be used for interior components of passenger cars, such as luggage compartment covers, partitions, carpet base plates, side panel decorations, ceilings, as well as car honeycomb board covers and interior honeycomb boards.

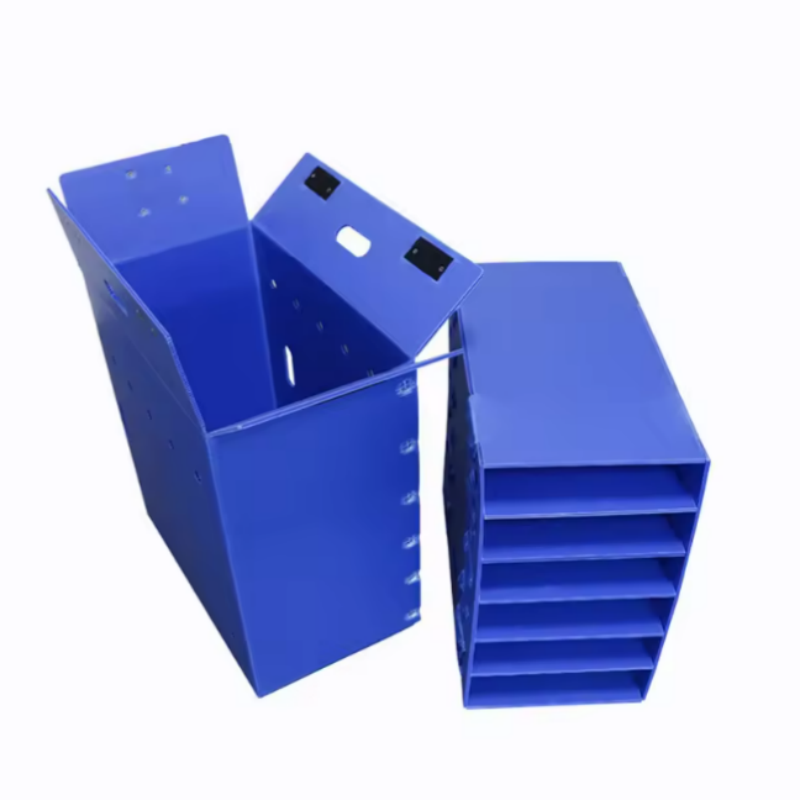

2. Packaging Industry: Specifically used for manufacturing various high-strength turnover boxes.
About Us
GWELL was established in 2010 and is a national high-tech enterprise specialized in making polymer flat forming equipment. It has over 20 years of experience in the plastic extrusion industry. GWELL has over 100 R&D personnel at present. Relying on strong manufacturing capabilities and talent people, GWELL achieves 100% independent designing and manufacturing of key components, and its annual production capacity reaches over 2,000 production lines.
There are more than 300 sets of advanced processing equipment. The single piece lifting capacity of workshop is up to 32 tons. We can produce heavy-duty extrusion equipment with a width of more than 8 meters and has an annual output of more than 2,000 sets of flat forming equipment for various types of plates, sheets, and films. Production capacity of the PET Sheet Extrusion Line can reach 1 ton per hour, and the PP sheet material production capacity can reach 900 kilograms per hour.
GWELL delivered more than 5,000 sets of flat forming equipment to the global customers. RENEWABLE RESOURCES, CSIQ, HIUV, LUSHAN and SVECK are all loyal partners of GWELL. Annual sales volume has been more than 1 billion yuan in making polymer flat forming equipment for three years and products are sold in more than 60 countries and regions around the world, including Russia, Spain, Turkey, Iran, South Korea, Indonesia, India, Japan, Germany and South America.
Certifications:
CE Certificate
Certificate No.: M.2020.103.UY1236
Certificate No.: MD-17-272-1
Patent Certificate
Certificate Name: Panel Cutting Machine with Debris Recycling Mechanism
Certificate No.: ZL 2022 2 2718667.8
Certificate Name: A Tension Adjustment Device for Plastic Film Production
Certificate No.: ZL 2024 2 3236677.3
Certificate Name: Standard-length Cutting Equipment for PET Sheet Extrusion Line
Certificate No.: ZL 2021 2 1379038.6
FAQ
1. What is the main business of GWELL?
GWELL specializes in EVA POE solar film extrusion line, sheet extrusion line, film extrusion line, sheet extrusion line, hollow extrusion line, waterproof extrusion line, foam extrusion line, floor extrusion line, stretch film Extrusion line, non-woven production line, etc.
2. Where does GWELL ship from?
GWELL’s factories are located in Taicang and Yancheng, Jiangsu, China, and the shipping port is Shanghai, China. Welcome to visit at any time~
3. What types of plastic extrusion machines are available from GWELL?
GWELL is a well-known custom manufacturer of casting machines, sheet machines, laminating machines, film machines, and plastic extrusion machinery in China.
