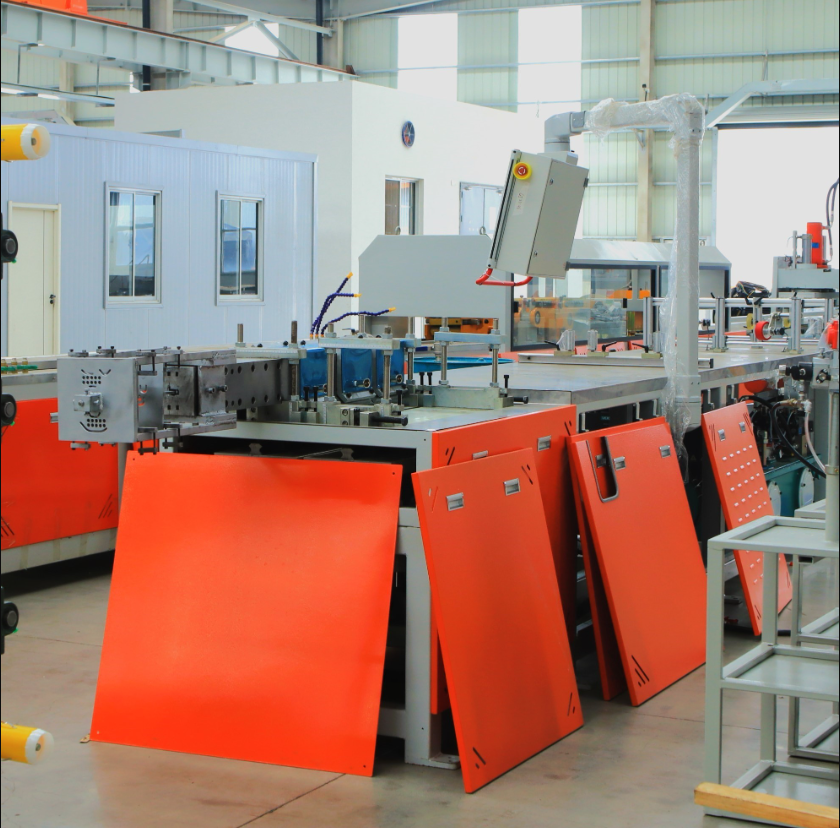

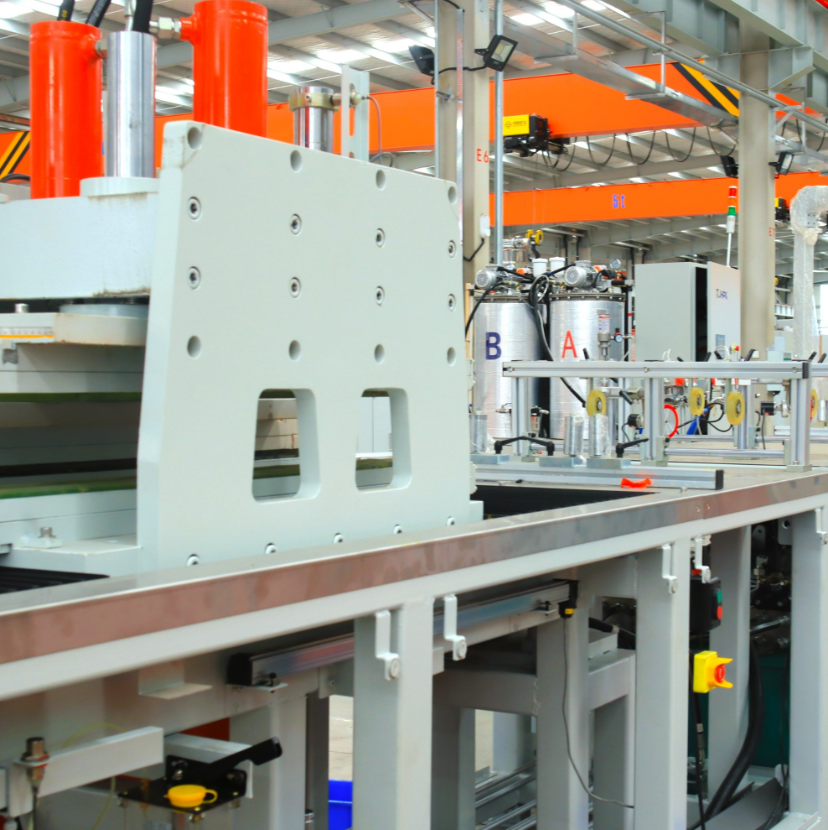

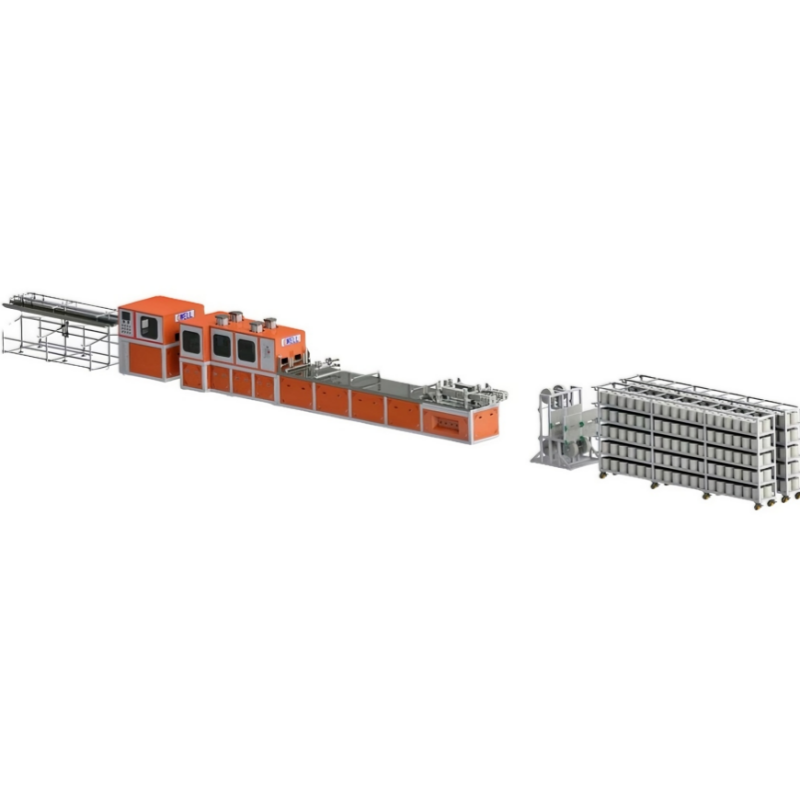

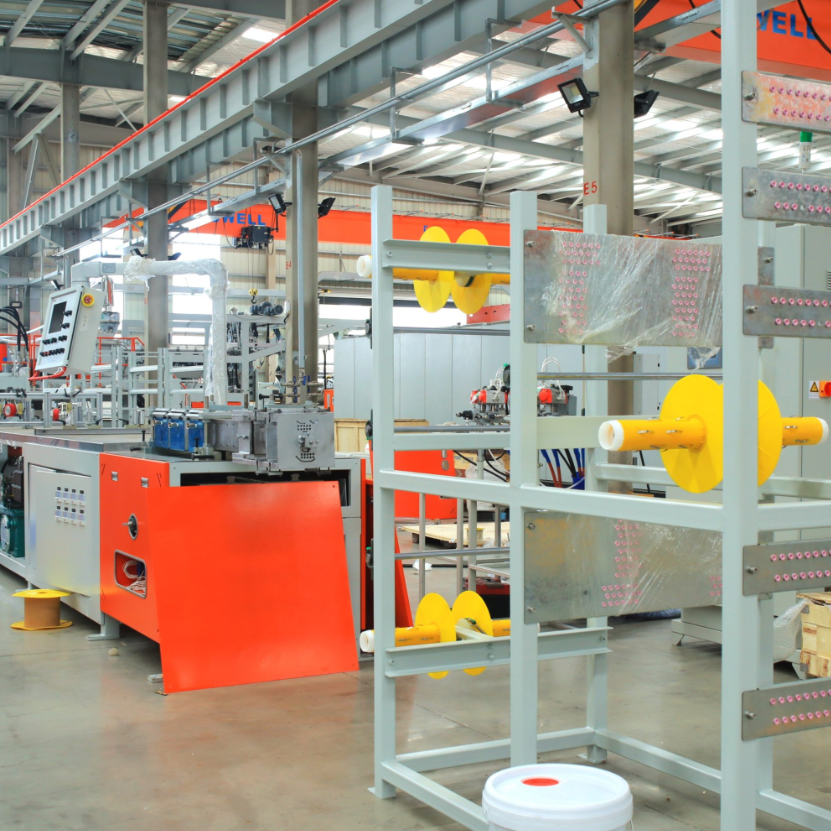

Solar Module Frame Special Production Line Features
1. Advanced Technology & Strong Independent R&D Capabilities
It integrates the world's top pultrusion technologies and has independently developed hydraulic and crawler-type pultrusion production lines, as well as thermoplastic PC/PET alloy extrusion production lines. The technical strength is outstanding.
2. High-Quality, Highly Reliable Core Components
All core parts are made with well-known brands from both domestic and international markets. The equipment operates stably, the quality of the products is guaranteed, and it can significantly reduce the occurrence of equipment failures.
3. Dual-Output Design, Maximum Production Efficiency
It comes with dual-output production functions, significantly increasing the hourly output and reducing the production cost per unit product.
4. Complete Auxiliary Equipment, One-Stop Solution
The complete set of auxiliary equipment includes injection machines, punching machines, bevel cutting machines, online polishing machines, felt knives, resin mixers, etc. There is no need for additional purchases and configurations. The requirements for integrated production can all be met.
5. Intelligent & Precise Injection System, Super Easy to Use
The injection machine supports dual-output injection with one machine, and the accuracy of the injection output can reach ±1%. It also has closed-loop injection pressure control, digital liquid level display, and automatic feeding functions. The injection process is accurate, easy to control, and simple to operate.
6. Precise & Efficient Cutting Process, Full of Details
It can achieve automatic fixed-length cutting, with no burrs on the cut edges. It is equipped with a powerful negative pressure waste suction device, maintaining a clean production environment. The length error of the cut is no more than ±1 millimeter, and the product dimensions can be highly uniform.
7. Simple Operation, Quick to Learn
The overall design of the equipment is based on the actual production needs. The operation process has been simplified, even beginners can easily operate it, and the learning cost is low.
Product Features

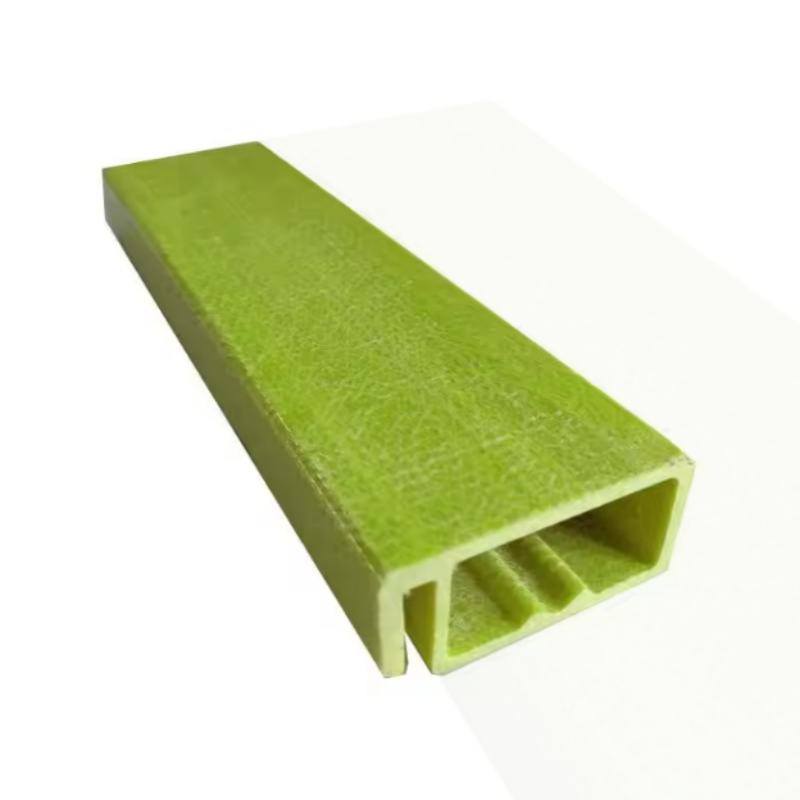

1. Outstanding Mechanical Properties
The axial tensile strength is more than 7 times that of traditional aluminum alloys. The load-bearing capacity is better than that of aluminum frames, capable of withstanding the impact of typhoons of level 17 and strong sandstorms; the density is only 1/3 of aluminum, and compared with aluminum frames of the same specification, it is 30%-50% lighter, making it particularly suitable for large-sized components. It can also effectively reduce transportation and installation costs.
2. Excellent Weather Resistance & Corrosion Resistance
The effects of salt fog and ammonia corrosion are particularly good. It has passed a 3000-hour salt fog test and can be used in harsh environments such as the seaside, the sea, and deserts. Even in extreme temperature differences ranging from -40℃ to 85℃, it remains stable and does not deform or become brittle, with a lifespan that is 5-8 years longer than aluminum frames.
3. Environmentally Friendly & Cost-Effective, with Perfect Value for Money
The energy consumption during production is only 1/5 of that of aluminum materials, and the carbon footprint is 85% less than that of primary aluminum profiles. It complies with the requirements of the dual carbon goals and can meet the standards of the EU carbon tariffs. The price is not affected by fluctuations in aluminum prices, and the overall cost can be reduced by more than 20%. The materials can be thermally decomposed and recycled after use, and the material utilization rate can reach 90%.
4. High Safety & Strong Adaptability
The volume resistivity is particularly high, and the insulation effect is excellent, reducing potential induced attenuation, improving power generation efficiency, and completely avoiding the risk of leakage. The dimensional accuracy is high, and it is a modular design, compatible with various solar modules, and the installation efficiency can be increased by 15%-20%. The surface treatment process and color can also be flexibly customized according to requirements.
Parameter (Please consult sales engineers for details)
Model Type | Installed Capacity(KW) | Out Put(m/min) | Pulling Force(KN) |
GWLJ-L100 Caterpillar-Single | 30 | 2m/min | 100 |
GWLJ-L200 Caterpillar-Double | 35 | 2m/min | 100 |
GWLJ-Y200 Hydraulic-Double | 42 | 2m/min | 100 |
GWZ65 Twin screw extruder | 120 | 2m/min | 100 |
Application

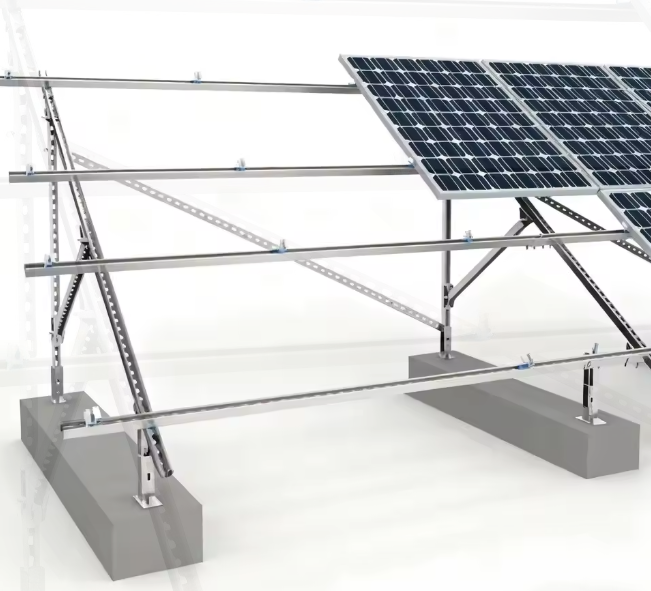

1. Mass production of polyurethane solar frame can be used for ground photovoltaic installations in residential and commercial buildings, and is also suitable for offshore photovoltaic systems.
2. Customized production of frames that are suitable for different environments is available. They can be used in coastal, desert, and high-altitude areas. The cross-section, color, and surface treatment can all be selected as needed, with high flexibility.
3. Support production of frames that match large-sized components of 182mm/210mm wafers. It is specially provided as a supporting service for photovoltaic module manufacturers and component suppliers.
4. It can be extruded together with glass/carbon fiber to form a high-strength composite frame, which is suitable for use in solar tracking systems and floating photovoltaic systems.
About Us
GWELL was established in 2010 and is a national high-tech enterprise specialized in making polymer flat forming equipment. It has over 20 years of experience in the plastic extrusion industry. GWELL has over 100 R&D personnel at present. Relying on strong manufacturing capabilities and talent people, GWELL achieves 100% independent designing and manufacturing of key components, and its annual production capacity reaches over 2,000 production lines.
There are more than 300 sets of advanced processing equipment. The single piece lifting capacity of workshop is up to 32 tons. We can produce heavy-duty extrusion equipment with a width of more than 8 meters and has an annual output of more than 2,000 sets of flat forming equipment for various types of plates, sheets, and films. Production capacity of the PET Sheet Extrusion Line can reach 1 ton per hour, and the PP sheet material production capacity can reach 900 kilograms per hour.
GWELL delivered more than 5,000 sets of flat forming equipment to the global customers. RENEWABLE RESOURCES, CSIQ, HIUV, LUSHAN and SVECK are all loyal partners of GWELL. Annual sales volume has been more than 1 billion yuan in making polymer flat forming equipment for three years and products are sold in more than 60 countries and regions around the world, including Russia, Spain, Turkey, Iran, South Korea, Indonesia, India, Japan, Germany and South America.
Certifications:
CE Certificate
Certificate No.: M.2020.103.UY1236
Certificate No.: MD-17-272-1
Patent Certificate
Certificate Name: Panel Cutting Machine with Debris Recycling Mechanism
Certificate No.: ZL 2022 2 2718667.8
Certificate Name: A Tension Adjustment Device for Plastic Film Production
Certificate No.: ZL 2024 2 3236677.3
Certificate Name: Standard-length Cutting Equipment for PET Sheet Extrusion Line
Certificate No.: ZL 2021 2 1379038.6
FAQ
1. Will GWELL arrange professional technicians to install and debug equipment?
GWELL will assign 1-2 technical engineers to the customer site to guide the installation and testing of the plastic extruder.
2. How can I order and make payments?
Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and Proforma Invoice to you. You can pay via TT bank transfer, LC as you like
3. How long is the delivery date?
Usually it takes about 90 days depends on different machinery upon receipt of order advance payment.
