PVC Soft Sheet Extrusion Line Features
1. Precise Control & Easy Operation
Equipped with a digital controller, PLC system and touchscreen operation panel, the electrical control cabinet is compact and filled with high-quality Siemens electrical components. The operation is extremely simple. The PLC and servo motor can precisely control the sheet size, and the frame of the extruder can be moved, making the operation highly flexible.
2. Super Powerful Plasticizing Core
It uses a vertical integrated gearbox, which has a large torque and is very durable; the screw barrel is made of dual metals and comes with temperature control, resulting in excellent mixing and plasticizing effects. Coupled with an imported static mixer, it can fully melt the resin, achieve uniform color mixing, and increase the output of extrusion.
3. Precise Molding & Accurate Temperature Control
The mold is T-shaped / hanger-shaped, and a double throttle design has been implemented. Combined with bidirectional screws and roller adjustment, the sheet thickness can be controlled extremely precisely. The thyristor temperature control has an error of only ±1℃, ensuring stable plasticizing effect; the rollers are independently temperature-controlled, ensuring uniform sheet thickness and a smooth surface.
4. Processing Multiple Products & Outstanding Finished Product Performance

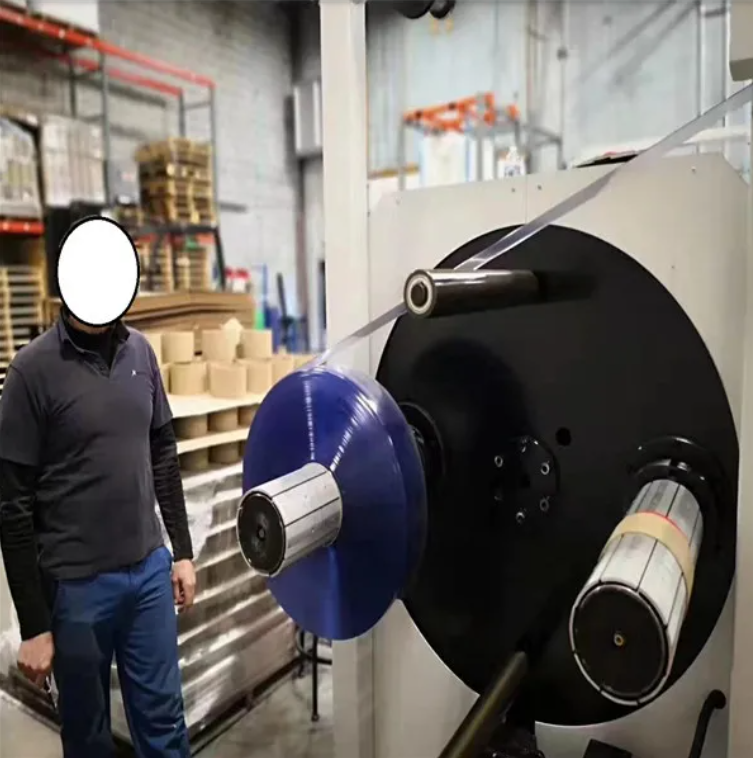

The three-roll calender can be adjusted in angle and height, and also has a stamping table. It is suitable for any thickness of sheet. The slicer cuts accurately, and the winding table is equipped with a torque motor, allowing for flexible adjustment of speed and tension. Our exclusive screw is combined with GWELL vacuum hopper, resulting in products with high transparency and resistance to hardening at -30℃. Additionally, there is dedicated auxiliary design, without the need to modify equipment or stop production, allowing for the direct production of three types of patterned PVC curtains.
5. Energy-Saving & Power-Efficient & Extremely Stable Operation
This extruder has a high output and low energy consumption, enabling efficient production. The entire production line has a high level of automation, requiring only 2-3 operators. Moreover, we have a professional after-sales team that can respond quickly and support, ensuring the long-term stable operation of the equipment.
PVC Soft Sheet Extrusion Line Process Flows

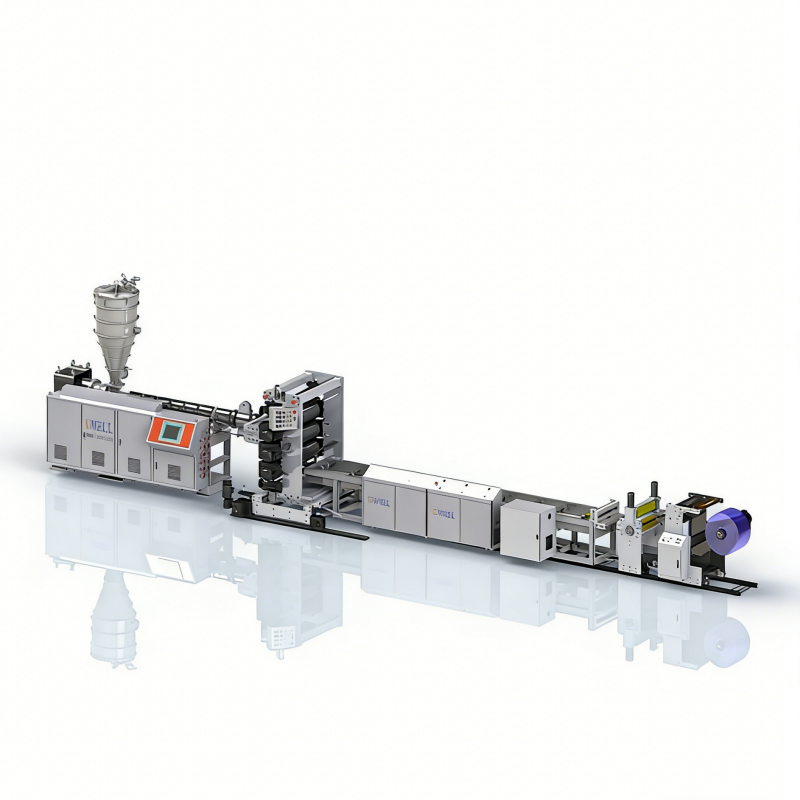

Extruder—Screen changer—Melt pump—T-die—Calender—Cooling bracket—Haul-off—Winder
Product Features
The comprehensive performance of PVC soft sheets is particularly outstanding: they have extremely strong anti-corrosion properties, as stated by the Global Plastic Network, making them highly suitable for use in chemical equipment for corrosion protection; they are also very easy to process, allowing for smooth cutting, welding, and bending; and their mechanical properties are also excellent, with high hardness and rigidity, and overall strength is outstanding.

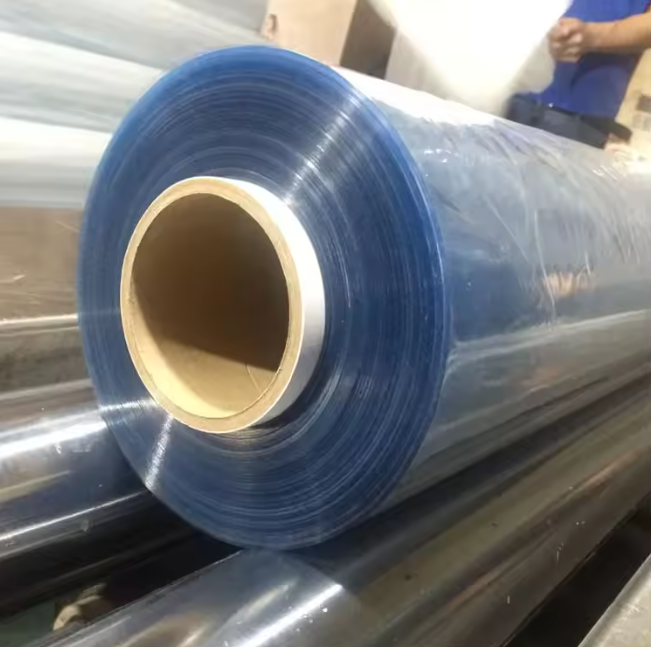

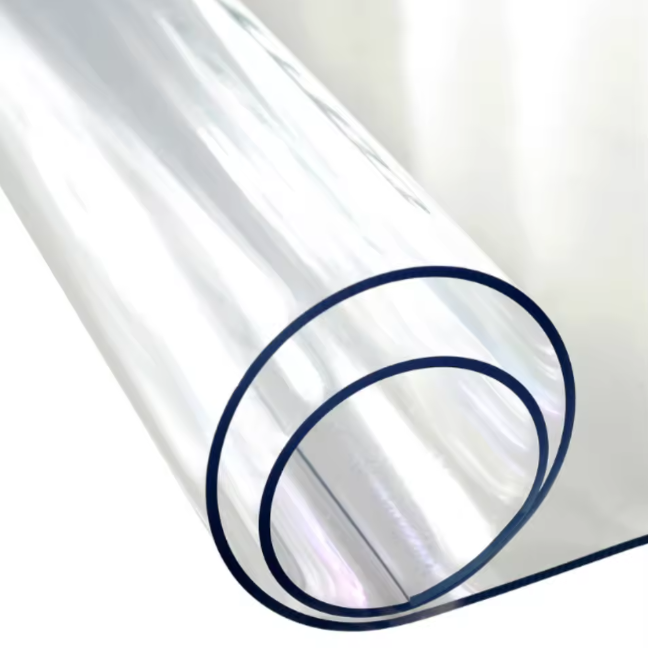

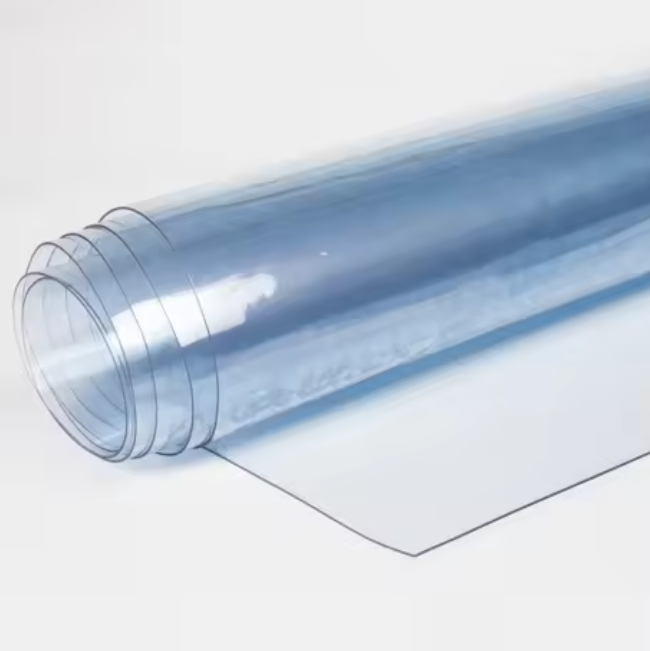

GWELL’s PVC soft sheet is produced using our exclusive extrusion production line, and it has numerous advantages: excellent electrical insulation, stable chemical properties, self-extinguishing function, low water absorption, and ease of use for both bonding and painting. It also has a high cost-performance ratio. Our transparent PVC soft sheet and high-quality soft glass can sometimes directly replace traditional soft curtains, ordinary soft glass, and even ordinary glass. It has no flaws on the surface, is shiny, has no odor, has uniform color, good light transmission, is soft and elastic, does not deform easily, can withstand low temperatures of -30℃ or high temperatures of 100℃, and is not afraid of aging, corrosion, or impact. This product is formed by a single extrusion process and does not separate. It maintains flexibility even in extremely cold conditions and can last for a long time. It is also safe and environmentally friendly, making cleaning and bonding easier. Its physical properties are even better than rubber. It is particularly suitable for use on tabletops. For use in restaurants, it can also reduce cleaning costs. Its application areas are wide, including chemical, electroplating, insulation fields, as well as car and train interiors.
GWELL’s PVC soft board offers a wide range of colors, including brown, green, white, and gray. It has excellent performance and is widely applicable. It is soft in texture, resistant to low temperatures, and durable. It is resistant to acids, alkalis, corrosion, and tear-resistant. These qualities are outstanding. It is also convenient for welding. Its physical properties are superior to those of rubber and other rolls. This product is particularly suitable for use in the chemical and electroplating industries. For example, it can be used as the lining for electrolytic cells or insulation pads. Additionally, it is also suitable as an auxiliary material for the interiors of cars and trains.
Parameter (Please consult sales engineers for details)
Type of extrusion line | conical twin-screw PVC Soft Sheet Extrusion Line | single screw PVC Soft Sheet Extrusion Line |
Extrusion type | Mono-extruded | |
Finished Product | one-layer sheet | |
Raw material | PVC vergin | |
Net width | 150-450mm，600-2000mm | |
Thickness range | 0.4-10mm and more | |
Capacity | 200kg/h-800kg/h and more | |
Application | Soft curtain, crystal plate, and more | |
Application
GWELL PVC Soft Sheet Extrusion Line can produce flexible and transparent eco-friendly PVC sheets with excellent comprehensive performance. It can be used in various fields including industry, commerce and civilian sectors.
1. Industrial Applications
These industries such as refrigeration, food processing, printing, textiles, electronics, instrumentation, medicine, warehousing can all use it. It can be used as insulation material for cold storage and food workshops, as a protective cover for industrial equipment, a heat insulation accessory for electrical instruments, and also as dust-proof sheets for medicine and warehousing. Additionally, it can also be used as a dumping guide piece in industry, with excellent electrical insulation performance and effective protection against harmful light.
2. Commercial & Civilian Applications

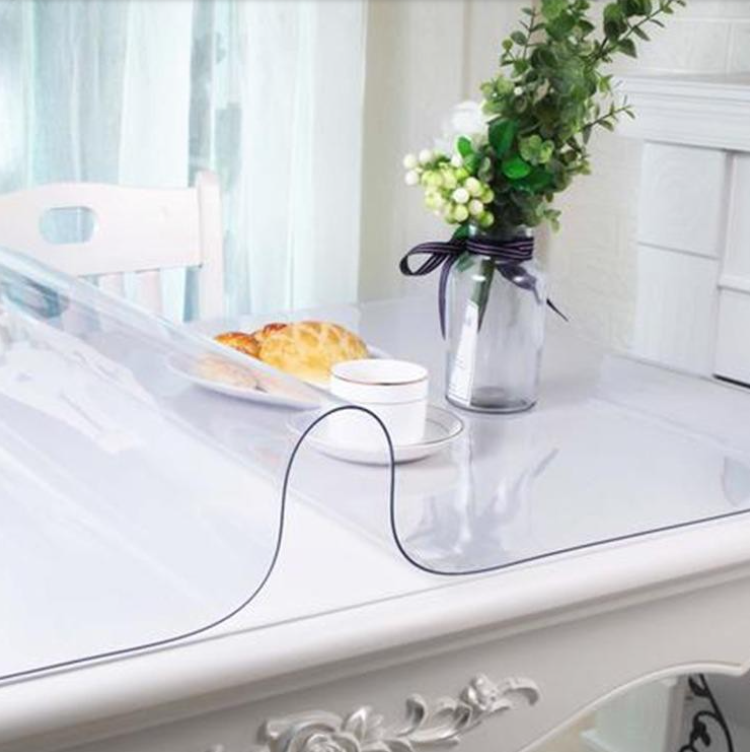

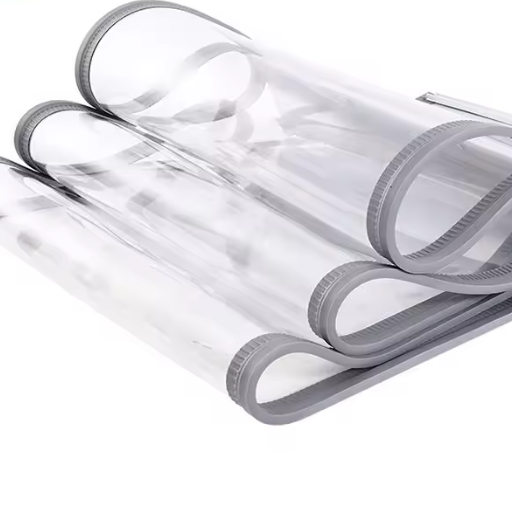

Mainly used as soft curtains and soft glass: Soft curtains are used in supermarkets, restaurants, and factories, providing wind protection, sound insulation, energy savings, and space division; soft glass and table mats can protect the tabletop, and are particularly convenient for use in homes, offices, and hotels. Additionally, they can be installed in sunrooms and greenhouses for lighting purposes, can be made into safety warning signs, or can be used for surface protection of furniture and vehicles.
About Us
GWELL was established in 2010 and is a national high-tech enterprise specialized in making polymer flat forming equipment. It has over 20 years of experience in the plastic extrusion industry. GWELL has over 100 R&D personnel at present. Relying on strong manufacturing capabilities and talent people, GWELL achieves 100% independent designing and manufacturing of key components, and its annual production capacity reaches over 2,000 production lines.
There are more than 300 sets of advanced processing equipment. The single piece lifting capacity of workshop is up to 32 tons. We can produce heavy-duty extrusion equipment with a width of more than 8 meters and has an annual output of more than 2,000 sets of flat forming equipment for various types of plates, sheets, and films. Production capacity of the PET Sheet Extrusion Line can reach 1 ton per hour, and the PP sheet material production capacity can reach 900 kilograms per hour.
GWELL delivered more than 5,000 sets of flat forming equipment to the global customers. RENEWABLE RESOURCES, CSIQ, HIUV, LUSHAN and SVECK are all loyal partners of GWELL. Annual sales volume has been more than 1 billion yuan in making polymer flat forming equipment for three years and products are sold in more than 60 countries and regions around the world, including Russia, Spain, Turkey, Iran, South Korea, Indonesia, India, Japan, Germany and South America.
Certifications:
CE Certificate
Certificate No.: M.2020.103.UY1236
Certificate No.: MD-17-272-1
Patent Certificate
Certificate Name: Panel Cutting Machine with Debris Recycling Mechanism
Certificate No.: ZL 2022 2 2718667.8
Certificate Name: A Tension Adjustment Device for Plastic Film Production
Certificate No.: ZL 2024 2 3236677.3
Certificate Name: Standard-length Cutting Equipment for PET Sheet Extrusion Line
Certificate No.: ZL 2021 2 1379038.6
FAQ
1. Is GWELL a Manufacturer?
Yes, We own 4 manufacturing bases and sales center in Shanghai , Suzhou ,Yancheng, Nanjing, Nantong.
2. How long is the delivery date?
Usually it takes about 90 days depends on different machinery upon receipt of order advance payment.
3. What is your Minimum Order Quantity?
One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical innovation or improvements for your future purchasing plan.
