The Growing Demand for PETG Decorative Sheets
In today’s interior design and furniture manufacturing sectors, materials must balance aesthetics, durability, and sustainability. PETG decorative sheets have rapidly emerged as a preferred solution due to their high transparency, impact resistance, and eco-friendly properties.
From modern cabinetry to architectural wall panels, manufacturers are under increasing pressure to deliver consistent quality at scale. This is where a precision-engineered PETG decorative sheet extrusion line becomes critical.
How Does a PETG Decorative Film Production Line Work?
A PETG decorative sheet production line is a continuous extrusion system that converts raw plastic materials into high-quality sheets through controlled melting, shaping, and cooling processes. Below is a step-by-step breakdown:
1. Raw Material Feeding & Drying
PETG, APET, RPET, or CPET resins are first dehumidified and crystallized to remove moisture. This step is crucial because PET-based materials are highly sensitive to humidity, which can cause bubbles or haze.
2. Plasticizing (Extrusion Stage)
The dried material enters a high-performance extruder (single screw, twin screw, or multi-screw), where it is:
Melted under controlled temperature zones
Homogenized for uniform viscosity
Stabilized to ensure consistent flow
3. Co-Extrusion (Optional Multi-Layer Structure)

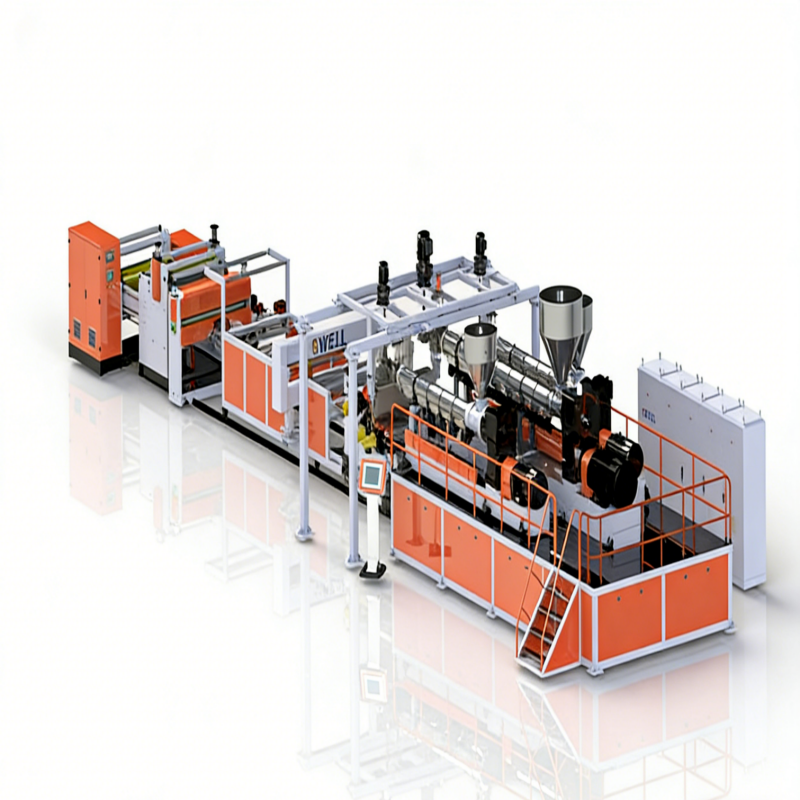

For advanced applications like GAG sheets (PETG-APET-PETG), multiple extruders feed into a co-extrusion system to form:
Outer PETG layers (for gloss and surface quality)
Inner APET layer (for rigidity and cost efficiency)
This structure significantly enhances mechanical strength and visual appeal.
4. T-Die Forming
The molten material passes through a precision T-die, shaping it into a flat sheet. Thickness uniformity is tightly controlled at this stage.
5. Calendering & Cooling
The sheet enters a multi-roll calender system, where it is:
Pressed to achieve the desired thickness
Cooled gradually for dimensional stability
Polished for superior surface finish
6. Edge Trimming & Thickness Control
Online measurement systems ensure real-time thickness accuracy (±0.02mm), while trimming units remove excess edges.
7. Haul-Off & Winding/Cutting
Finally, the sheet is:
Pulled at a constant speed
Either rolled or cut into fixed lengths
Prepared for downstream processing (lamination, thermoforming, etc.)
Industry Benchmark: PETG Sheet Production Parameters
Understanding performance metrics is essential when selecting a production line. Below is a comparative industry overview:
| Parameter | Conventional Line | GWELL Advanced Line |
|---|---|---|
| Output Capacity | 200–600 kg/h | 300–1000 kg/h (custom) |
| Thickness Tolerance | ±0.05 mm | ±0.02 mm |
| Sheet Width | Up to 1200 mm | 600–1500 mm |
| Material Compatibility | Limited | APET/PETG/RPET/CPET |
| Energy Consumption | Standard | Up to 25% lower |
| Automation Level | Semi-automatic | Fully automated PLC system |
| Multi-layer Capability | Basic | Advanced GAG co-extrusion |
| Surface Quality | सामान्य | Optical-grade clarity |
This performance advantage directly supports higher-end applications and premium product positioning.
Key Advantages of GWELL PETG Extrusion Line
Precision Engineering for Optical Quality
Advanced screw design and thermal control ensure crystal-clear transparency, eliminating defects such as haze or crystallization.
Flexible Multi-Layer Production
Supports single-layer and GAG three-layer structures, enabling manufacturers to target both cost-sensitive and premium markets.
Intelligent Automation
Equipped with Siemens PLC & HMI systems, offering:
Real-time monitoring
Automated thickness adjustment
Reduced operator dependency
High Efficiency & Continuous Operation
Heavy-duty components and optimized torque systems allow 24/7 stable production, improving plant utilization.
Sustainable Manufacturing
Compatible with RPET recycled materials, helping manufacturers meet environmental regulations and ESG goals.
Application Scenarios
The versatility of PETG decorative sheets enables wide adoption across industries:
Furniture Manufacturing: Cabinet panels, wardrobes, tabletops
Interior Decoration: Wall panels, ceilings, partitions
Retail & Display: POP displays, signage boards
Premium Packaging: Cosmetic boxes, gift packaging
FAQ: PETG Decorative Sheet Production
1. Why is PETG preferred over PVC or acrylic?
PETG offers a better balance of clarity, toughness, and environmental safety, without chlorine content like PVC.
2. What is a GAG sheet and why is it important?
A GAG sheet (PETG-APET-PETG) combines:
Surface aesthetics (PETG outer layers)
Structural strength (APET core)
This reduces cost while maintaining premium quality.
3. Can recycled materials be used without affecting quality?
Yes. With proper processing, RPET can be used effectively, especially with advanced extrusion systems like those from GWELL Machinery.
4. What industries benefit most from this production line?
Furniture, construction, packaging, and retail display industries see the highest ROI.
5. How quickly can manufacturers recover their investment?
Typically within 12–24 months, depending on production scale and product positioning.
Why GWELL Is a Trusted Industry Partner
500+ Global Installations across 30+ countries
Turnkey Project Delivery from design to commissioning
30% Efficiency Improvement over traditional systems
Reliable After-Sales Support with dedicated engineering teams
GWELL is not just an equipment supplier—it is a long-term technology partner for manufacturers aiming to scale efficiently.
Keywords: PETG Decorative Sheet Extrusion Line, GAG Sheet Production Machine, APET Sheet Extrusion Line, PET Sheet Making Machine, Plastic Sheet Extrusion Equipment, GWELL Machinery, Decorative Film Production Line, High Transparency PETG Sheet, Three-Layer Co-extrusion Line, Furniture Decorative Sheet Machine.
Take the Next Step Toward High-End Production
If you are planning to upgrade or expand your PETG decorative sheet production, investing in a high-performance extrusion line is a strategic move toward better margins and market competitiveness.
🌐 Learn more:
Official Website: https://www.gwellmech.com/
GAG Sheet Line: https://www.gwellmech.com/product-gwell-pet-three-layers-gag-sheet-extrusion-line.html
Final Thoughts
A PETG decorative film production line is more than just machinery—it is the backbone of modern decorative material manufacturing. With increasing demand for high-quality, sustainable, and visually appealing materials, manufacturers must adopt advanced technologies to remain competitive.
Backed by deep technical expertise and global project experience, GWELL Machinery delivers solutions that combine precision, efficiency, and scalability—helping you lead in a rapidly evolving market.
