As a bridge connecting production and consumption, the importance of the packaging industry is self-evident. Within the realm of packaging material manufacturing, CPP (Cast Polypropylene) and CPE (Cast Polyethylene) multi-layer co-extruded cast films have distinguished themselves across diverse sectors—including food, pharmaceuticals, and industry—thanks to their exceptional performance. GWELL Machinery, a world-leading provider of extrusion process technology and plastic processing equipment, produces CPP and CPE multi-layer co-extruded cast film production lines that stand as true exemplars of excellence in this field.
GWELL Machinery’s CPP and CPE multi-layer co-extrusion cast film production line is specifically designed to meet the rigorous standards required for industrial, food, and pharmaceutical packaging applications. This production line not only delivers stable productivity, superior performance, and high output, but also achieves industry-leading levels of uniformity in cast film thickness. Every stage of the process is meticulously designed and rigorously tested to ensure the exceptional quality of the final product.
Technical Advantages
Multiple Configurations, Flexible Adaptability: To meet the diverse needs of various clients, GWELL Machinery’s cast film lines offer a wide range of configuration options. From screw L/D ratios to the number of layers in the extrusion structure, customers can customize the system precisely according to their specific process requirements. This flexibility not only enhances the versatility of the production line but also helps customers save on costs and boost production efficiency. Siemens PLC: Intelligent Control: The production line is equipped with a Siemens PLC control system, enabling comprehensive data visualization and intelligent management. Through a host computer interface, operators can intuitively monitor the real-time operating status of the line, as well as process and archive production data. This intelligent management approach not only improves production efficiency but also minimizes errors resulting from manual operation.

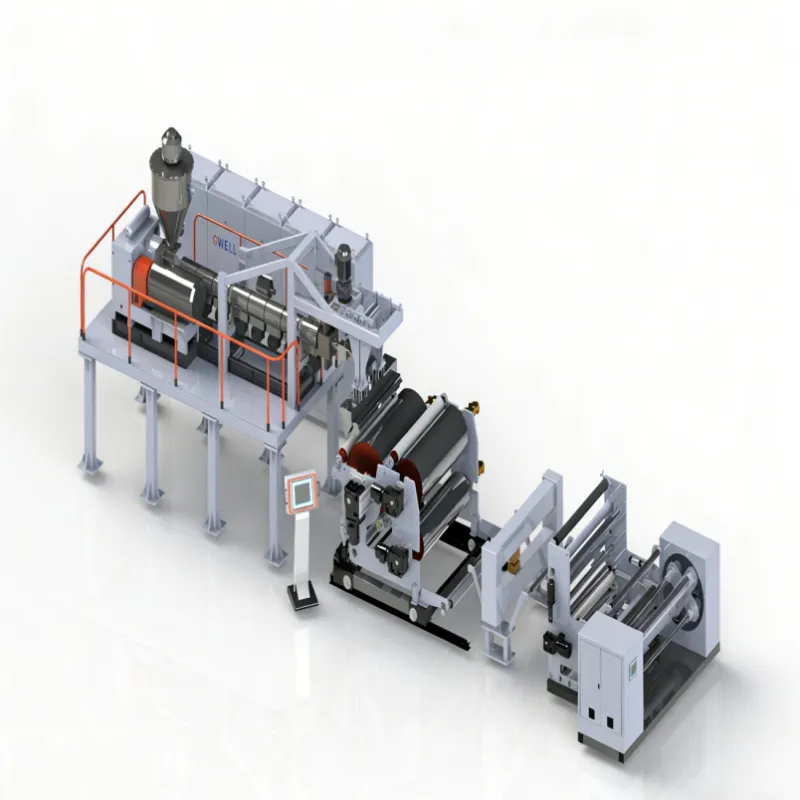

Production Line Details
Extrusion Section
The extrusion section serves as the core of the production line. GWELL Machinery employs an automatic vacuum loader, with an optional multi-component weighing and feeding system available to ensure the precise metering of raw materials. Screw diameters range from 65mm to 180mm, offering a variety of L/D ratio options between 28:1 and 40:1. Melt filtration is achieved using either a hydraulic screen changer or a long-life filter, ensuring the purity and stability of the melt. A melt pump is optionally available and can be selected based on specific requirements to meet diverse production demands.
Casting Section

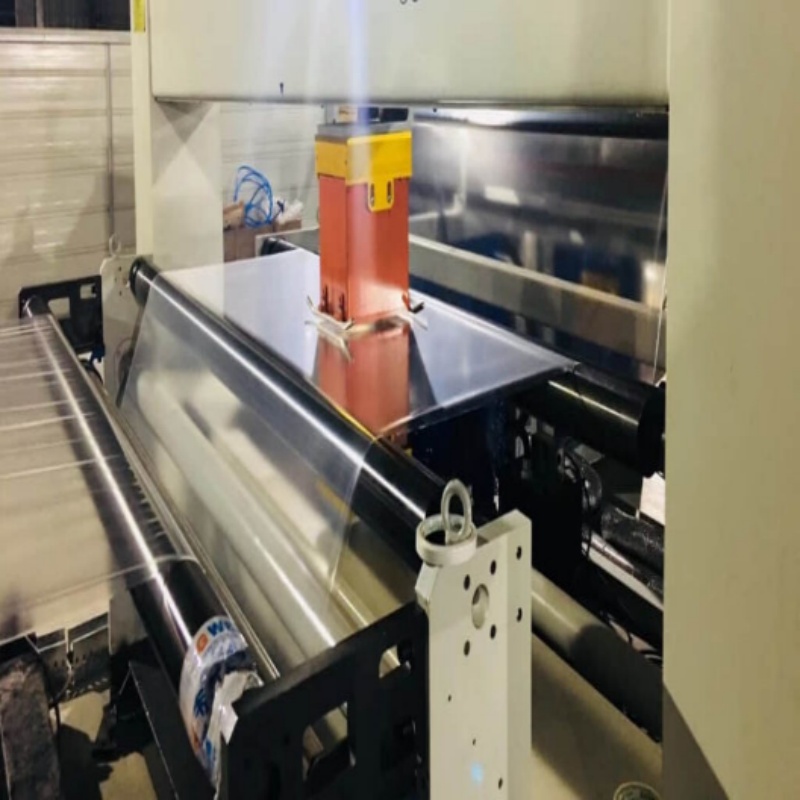

The casting section determines the quality and performance of the film. GWELL Machinery offers three options for casting roll diameters—Φ800mm, Φ1000mm, and Φ1200mm—while the cooling roll features a diameter of Φ400mm. The line covers a wide range of film widths, spanning from 1800mm to 5850mm, thereby satisfying production requirements for films of various dimensions. The mechanical speed reaches up to 250 m/min, significantly boosting production efficiency.
Corona Treatment and Winding Section

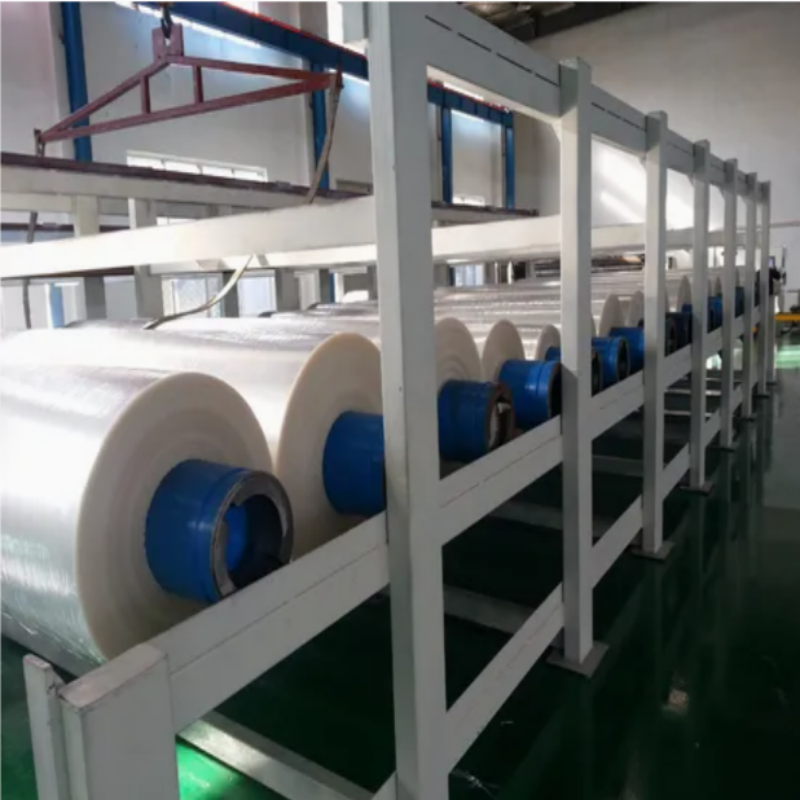

The corona treatment section offers optional configurations for either single-sided or double-sided treatment, catering to diverse customer requirements regarding film surface properties. The winding section features various configurations—including 2-station and 4-station turret winders, as well as center-plus-surface track-type winders—to ensure smooth, flat winding and efficient production operations.
Product Applications and Features

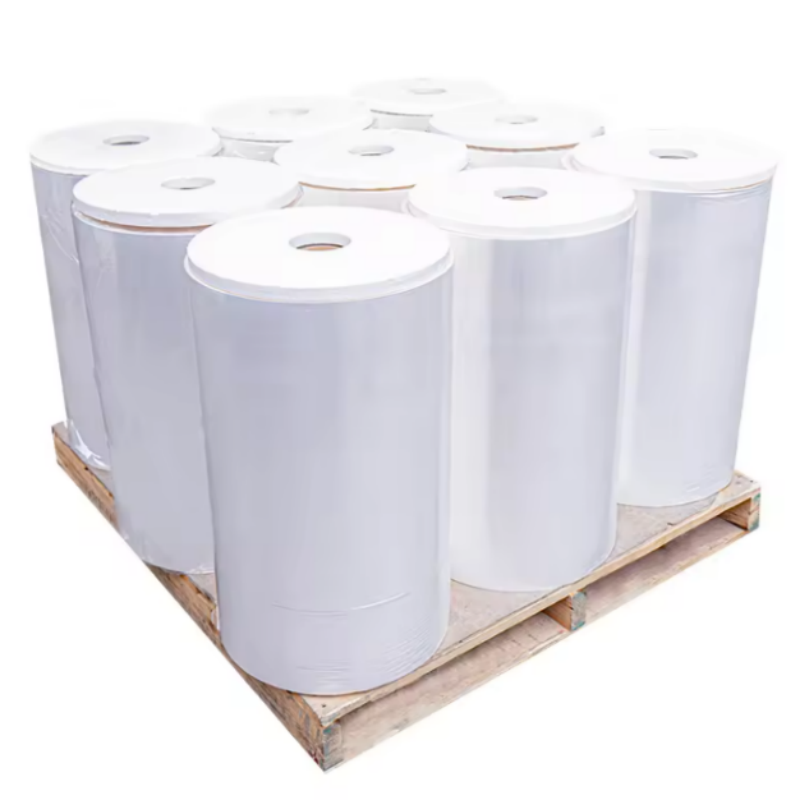

The films produced by GWELL Machinery CPP cast film production lines feature finished widths ranging from 2,500 mm to 5,850 mm, thicknesses between 0.018 mm and 0.1 mm, and production speeds reaching up to 180–250 m/min. These films exhibit excellent thickness uniformity, outstanding transparency and gloss, robust mechanical properties, and superior heat-sealing performance, making them ideally suited for subsequent processing applications such as printing, lamination, and metallization.
The key features of the production line include: an extrusion unit tailored to the viscosity and rheological properties of the raw materials; a high-precision closed-loop control system for extrusion pressure; a die designed based on rheological analysis and process simulation; an inline automatic thickness gauge; a cast roll featuring a staggered spiral convection flow channel design; and a modular roll temperature control system, among others. Collectively, these features ensure the exceptio
nal quality and production efficiency of the film.
Service and Support
In addition to supplying high-quality production equipment, GWELL Machinery provides clients with comprehensive process formulations and complete service packages for cast film production. Years of practical manufacturing experience have enabled GWELL Machinery to accumulate a wealth of expertise and technical know-how, allowing us to deliver customized solutions and technical support tailored to the diverse needs of our clients.
Furthermore, our production line control systems are equipped with remote diagnostic modules. These modules enable rapid response and troubleshooting in the event of a malfunction, thereby minimizing downtime and mitigating potential losses for our clients.
Amidst the increasingly fierce competition within the packaging industry, GWELL Machinery’s multi-layer co-extrusion cast film production lines—specifically our CPP and CPE lines—stand out thanks to their exceptional performance and superior service. Whether in the fields of food packaging, pharmaceutical packaging, or industrial packaging, GWELL Machinery is capable of supplying high-quality films and production equipment that precisely meet our clients' requirements. Moving forward, GWELL Machinery will continue to uphold its core philosophy of "Innovation, Quality, and Service," striving to provide our clients with even higher-quality products and services as we work together to shape the future of the packaging industry.
